Paper Shopping Bag Handles: Twisted Kraft vs Cotton Rope Tensile Guide
In retail packaging engineering, the shopping bag handle is the sole mechanical interface between the consumer and the purchased product. A handle failure is one of the most damaging brand experiences possible—spilling premium apparel, luxury cosmetics, or gourmet bottles onto a sidewalk or shopping mall floor.
Yet, specifying the right handle is a complex balance between structural tensile strength, carrying ergonomics, converting automation economics, and circular recyclability.

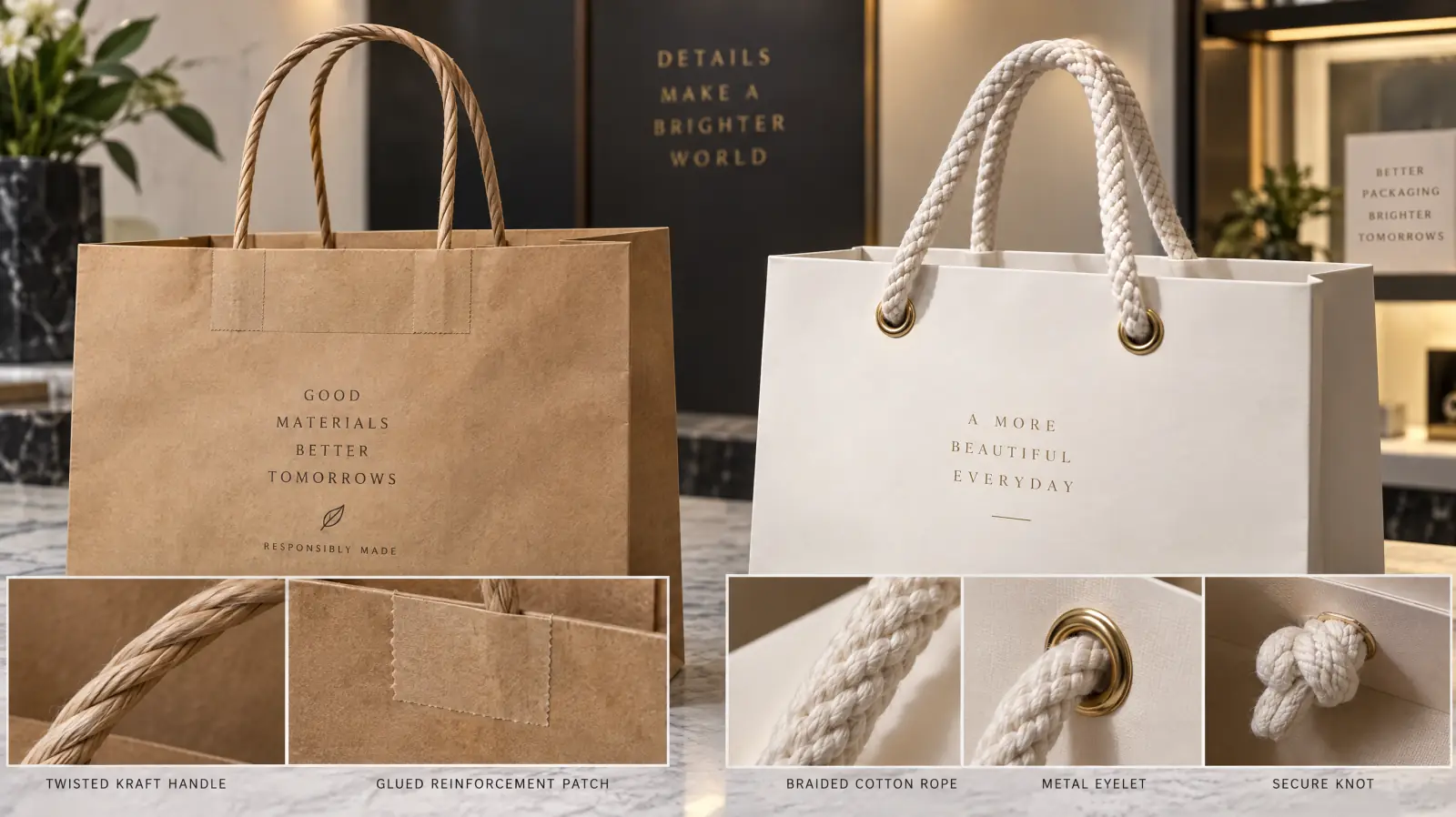

Should a retail brand specify high-speed, machine-applied twisted kraft paper handles, luxury hand-finished braided cotton ropes with turnover reinforcement, or clean die-cut handles?
This engineering guide examines handle tensile load capacity, adhesive patch shear mechanics, pull-off testing standards, and curbside recycling repulpability.
1. Quick Engineering Comparison: Shopping Bag Handles
| Engineering Parameter | Inline Twisted Kraft Paper | Knotted Braided Cotton Rope | Die-Cut Handle with Cardboard | Flat Folded Paper Handle |
|---|---|---|---|---|
| Manufacturing Method | 100% automated inline machine pasting | Manual hand-threading & knotting | Automated inline punch + patch card | Automated inline folding & pasting |
| Safe Working Load (SWL) | 8 kg to 14 kg (80 – 140 N) | 12 kg to 22 kg (120 – 220 N) | 5 kg to 10 kg (50 – 100 N) | 4 kg to 7 kg (40 – 70 N) |
| Tensile Pull-Off Failure | > 150 N (Paper fiber tear) | > 250 N (Knot anchor failure) | > 120 N (Perforation tear) | > 90 N (Adhesive shear peel) |
| Hand Comfort (Ergonomics) | Moderate (narrow 4mm diameter) | Superior (soft 6–8mm diameter cushion) | Low (flat edge creates finger pinch) | Moderate (wide flat surface area) |
| Curbside Recyclability | 100% repulpable mono-material | Must detach rope before recycling | 100% repulpable mono-material | 100% repulpable mono-material |
| Optimal Retail Segment | Fashion, department stores, books | Luxury boutiques, jewelry, cosmetics | Fast fashion, promotional events | Grocery, bakeries, takeaway food |
Explore compatible bag formats in our Paper Shopping Bags Category, Custom Kraft Paper Bags, and Custom Eurotote Paper Bags.
2. Structural Load Transfer Mechanics
The fundamental difference lies in how kinetic weight transfers from the handle into the paper bag wall:
┌────────────────────────────────────────────────────────────────────────┐
│ HANDLE STRESS DISTRIBUTION MECHANICS │
├───────────────────────────────────┬────────────────────────────────────┤
│ TWISTED KRAFT PATCH HANDLE │ KNOTTED COTTON ROPE EUROTOTE │
├───────────────────────────────────┼────────────────────────────────────┤
│ │ │
│ ╭──────╮ │ ╭──────╮ │
│ │ │ │ │ │ │
│ │ │ │ │ │ │
│ ┌──┴──────┴──┐ │ ───┴──────┴─── │
│ │ KRAFT PATCH│ │ (O) (O) Eyelets │
│ │ ADHESIVE │ │ [KNOT] [KNOT] │
│ │ SHEAR ZONE │ │ ══════════════ Turnover │
│ └────────────┘ │ Cardboard Reinforcement │
│ │ │ │ │ │ │
│ │ BAG BODY │ │ │ BAG BODY │ │
│ │ │
│ • Adhesive Lap-Shear Stress │ • Direct Mechanical Bearing Load │
│ • Load dispersed across patch │ • Load dispersed across entire │
│ surface area (40cm²) │ folded turnover top rim card │
│ │ │
└───────────────────────────────────┴────────────────────────────────────┘Twisted Kraft: Adhesive Lap-Shear Mechanics
Twisted kraft handles consist of continuous tightly spun long-fiber unbleached kraft paper cords. The ends are sandwiched between the inside bag wall and a 120–180 GSM kraft reinforcement patch:
- The failure point is governed by adhesive lap-shear strength (ASTM D1002).
- In high-grade converting lines, a high-tack EVA or metallocene hot-melt adhesive penetrates the porous paper fibers. When pulled to destruction, the failure is substrate-cohesive (the paper wall tears) rather than adhesive debonding.
Braided Cotton Rope: Mechanical Bearing Mechanics
Luxury Eurotote bags utilize 3-ply braided cotton, polyester, or PP cords threaded through punched holes:
- The load does not rely on glue; it is held by mechanical interference knots resting against a heavy 350–500 GSM turnover reinforcement cardboard folded inside the rim.
- This architecture distributes tensile stress across the entire top perimeter of the bag, allowing loads exceeding 20 kg.
For deep analysis of turnover cards, see our Cardboard Bases & Turnover Rims Guide.
3. Adhesive Formulation: EVA vs. Metallocene vs. PVA
In automated bag machines, adhesive selection dictates handle pull resistance:
┌────────────────────────────────────────────────────────────────────────┐
│ HANDLE ADHESIVE PERFORMANCE & FAILURE PROFILE │
├──────────────────────┬──────────────────────┬──────────────────────────┤
│ ADHESIVE CHEMISTRY │ SHEAR STRENGTH (MPa) │ THERMAL CREEP STABILITY │
├──────────────────────┼──────────────────────┼──────────────────────────┤
│ Standard EVA Hot Melt│ 1.2 – 1.8 MPa │ Low: softens at > 45°C │
│ Metallocene Polyolefin│ 2.4 – 3.2 MPa │ High: stable to 65°C │
│ Water-Based PVA Resin│ 3.0 – 4.0 MPa │ Extreme (thermoset bond) │
└──────────────────────┴──────────────────────┴──────────────────────────┘- Metallocene Hot Melt: The industry benchmark for high-speed bag converting lines running at 120 to 200 bags/min. Delivers rapid 1.5-second open times, deep fiber penetration, and will not soften when bags are transported inside uncooled shipping containers reaching 60°C in tropical transit.
- Cold Water-Based PVA (Polyvinyl Acetate): Slower setting time, but creates an ultra-durable hydrogen-bonded link with paper cellulose fibers. Once cured, the paper fibers will tear completely before the glue line separates.
4. Ergonomics: Contact Pressure & Finger Fatigue
A bag’s structural capacity is irrelevant if the consumer experiences acute pain while carrying it:
FINGER CONTACT PRESSURE EQUATION
Total Bag Weight (N)
Pressure (PSI) = ─────────────────────
Handle Contact Area (in²)- Twisted Kraft Handle (3.5mm – 4.0mm diameter): Under a 10 kg load, the narrow radius concentrates downward force into a narrow band across the phalanges, generating contact pressure exceeding 25 to 35 PSI. After 15 minutes of shopping, this induces finger pinching and cut sensation.
- Braided Cotton Rope (6.0mm – 8.0mm diameter): Soft cotton fibers deform under load, increasing the effective contact surface area by 300%. Peak contact pressure drops to 7 to 10 PSI, delivering the signature plush, effortless carry associated with high-end luxury retail.
- Knitted Paper Rope (Alternative Innovation): Modern sustainable mills now produce loose-knit braided paper cords (6mm diameter) that provide the soft ergonomic hand feel of cotton while remaining 100% curbside recyclable paper.
5. Recyclability & Circular Economy (EU PPWR & EPR)
Under the emerging EU Packaging and Packaging Waste Regulation (PPWR) and Extended Producer Responsibility (EPR) schemes worldwide:
- Mono-Material Purity: Bags with twisted kraft or flat folded paper handles are classified as 100% mono-material paper packaging. They drop directly into domestic paper bins and repulp cleanly in standard hydro-pulpers without mechanical separation.
- The Cotton/PP Rope Dilemma: Cotton cords and synthetic polyester ribbons do not dissolve in paper repulping vats. They clog screening equipment and must be manually removed by waste processors. Unless consumers actively detach the handles before disposal, the bag risks being diverted to landfills or incineration.
- The Solution for Luxury Brands: Specifying certified repulpable paper rope or hidden die-cut slot handles allows luxury retailers to maintain clean aesthetics while achieving full circular compliance.
Compare environmental lifecycle trade-offs in our RPET vs PP Non-Woven Reusable Bags LCA Guide.
6. Procurement & Quality Control Checklist
When sourcing custom paper shopping bags:
- Mandate Handle Tensile Pull Testing: Specify minimum 150 N pull-off strength per handle pair, verified under ISO 1924-2 tensile standards.
- Verify Turnover Reinforcement GSM: Ensure Eurototes use minimum 350 GSM bleached kraft or duplex board turnover rim inserts.
- Specify Eyelet Protection for Heavy Contents: For wine or catalog shopping bags carrying > 8 kg, include metal eyelets (grommets) to prevent rope knots from pulling through the paper holes.
- Match Paper GSM to Handle Class: Pair twisted kraft handles with 100–150 GSM kraft paper, and cotton rope handles with 180–250 GSM luxury art paper.
