Recyclable Mono-Material Pouches: MDO-PE vs Multi-Layer
Flexible packaging has revolutionized the consumer packaged goods (CPG) industry. Compared to rigid cans and glass jars, flexible pouches consume up to 75% less plastic by weight, ship flat to filling facilities, and dramatically lower distribution emissions.
Yet, flexible packaging has historically faced one massive environmental vulnerability: recyclability.
Traditional high-performance barrier pouches rely on multi-material laminates—fusing chemically incompatible layers such as PET (polyethylene terephthalate) + Aluminum Foil + PE (polyethylene). Because these dissimilar polymers cannot be economically separated in municipal recycling sorting plants, multi-material pouches inevitably end up in landfills or incineration facilities.
To satisfy tightening global regulations and consumer demand for circularity, the packaging industry is executing a major technical pivot toward all-PE (mono-material) recyclable pouches.
This technical guide breaks down the engineering behind Machine Direction Oriented Polyethylene (MDO-PE), barrier integration, and heat-sealing window optimization.
The Engineering Challenge: Why Replacing Multi-Material Laminates Is Hard
In traditional triplex laminates (PET / AL / PE), each polymer layer performs a specialized function:
- Outer PET Layer: Provides optical clarity, high tensile strength, high melting point ($250^\circ\text{C}$ to withstand hot sealing jaws without burning), and superior rotogravure printability.
- Middle Foil Layer: Delivers an impenetrable barrier against oxygen, moisture vapor, and light.
- Inner PE Layer: Melts at a lower temperature ($110^\circ\text{C}$ to $130^\circ\text{C}$) to form airtight, leak-proof hermetic seals.
When brands attempt to produce an all-PE pouch using standard blown polyethylene film, two severe technical hurdles arise:
- Heat Resistance & Shrinkage: Blown PE melts easily. When standard sealing bars clamp down on the pouch edges, the outer layer melts, drags, and puckers, ruining package aesthetics and jamming high-speed form-fill-seal machinery.
- Loss of Stiffness & Optical Haze: Standard PE lacks the tensile modulus (stiffness) required for a pouch to stand crisply upright on a supermarket shelf without sagging or slumping.
The Breakthrough: Machine Direction Oriented Polyethylene (MDO-PE)
The technological solution enabling high-performance mono-material packaging is MDO-PE film:
How MDO-PE Is Manufactured
- Extruded high-density or linear low-density polyethylene film is fed through a series of precision heating rollers.
- The film is stretched longitudinally in the machine direction at high ratios (typically $4:1$ to $7:1$) at temperatures just below its melting point.
- The stretching process straightens and aligns the randomized polymer chains parallel to each other.
- The film is heat-set and annealed to lock the oriented crystalline structure in place.
Performance Gains of MDO-PE
- Enhanced Thermal Resistance: Oriented PE exhibits a significantly elevated deformation temperature, creating a wide $35^\circ\text{C}$ to $50^\circ\text{C}$ operating sealing window between the outer MDO-PE facing and the inner low-initiation sealant PE layer.
- Glass-Like Optical Clarity & High Gloss: Matches the visual transparency, gloss, and print sharpness of biaxially oriented PET.

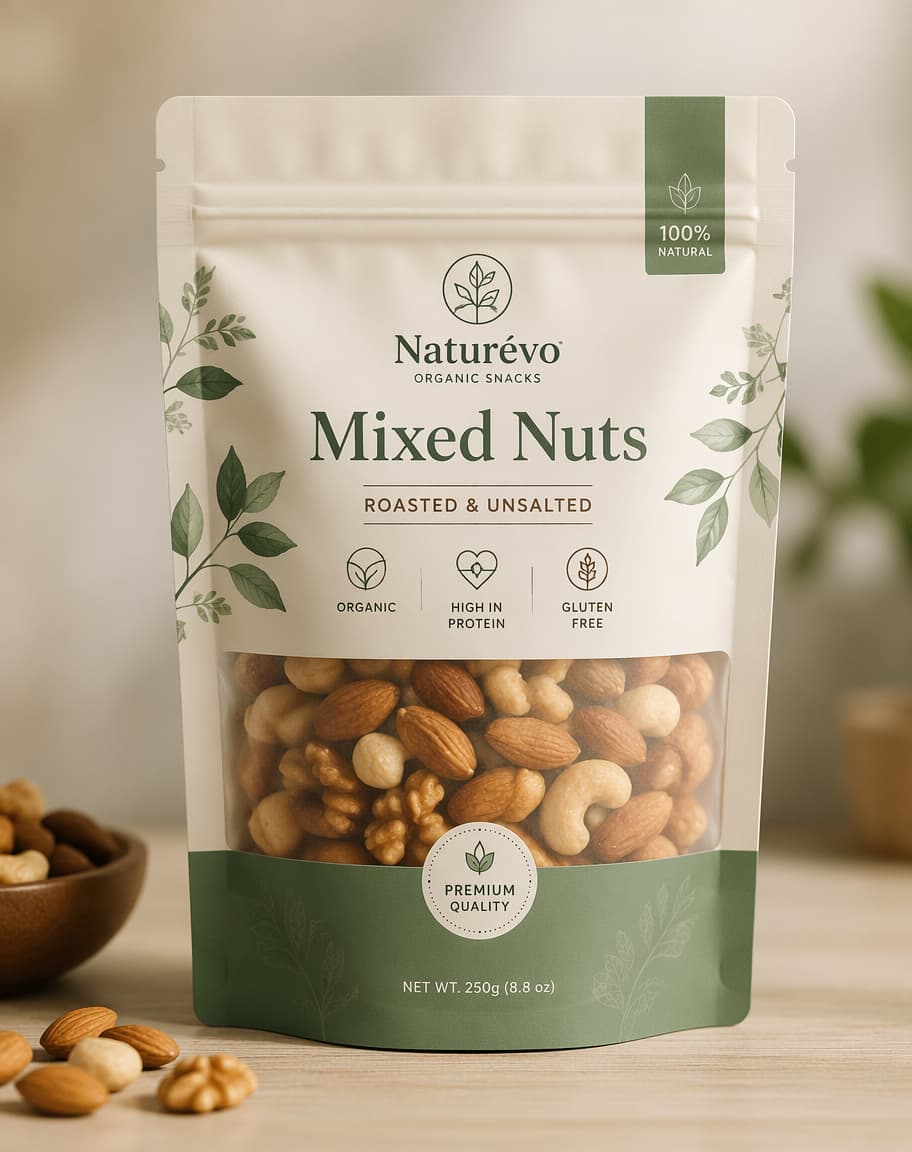

- High Tensile Modulus: Provides the structural stiffness required for premium, upright shelf presentation in stand-up pouches and flat bottom bags.
Incorporating High Barrier into Mono-Material Structures
Achieving oxygen and water vapor barrier without unrecyclable aluminum foil requires specialized microscopic barrier technologies:
1. Ultra-Thin EVOH Barrier Co-Extrusion
- Ethylene Vinyl Alcohol (EVOH) provides extraordinary oxygen barrier performance.
- Under global recyclability protocols (such as CEFLEX in Europe and APR in North America), a mono-material PE structure remains fully classified as recyclable as long as the EVOH content remains below 5% of total package weight.
- When EVOH is combined with microscopic compatibilizers, the structure recycles cleanly through curbside PE collection streams without degrading the quality of post-consumer recycled resin.
2. AlOx and SiOx Vacuum Deposition
- Applying nano-scale coatings of Aluminum Oxide (AlOx) or Silicon Oxide (SiOx) via plasma vacuum deposition onto MDO-PE films creates a glass-clear, high-barrier film with near-zero OTR and WVTR, completely free of metallic foil.
Performance Comparison: Multi-Material vs Mono-Material PE
| Property | Multi-Material Triplex (PET / AL / PE) | Recyclable Mono-Material (MDO-PE / EVOH-PE) |
|---|---|---|
| Recyclability Stream | Non-recyclable (Landfill / Energy Recovery) | 100% Recyclable in PE Stream (Code 4) |
| Oxygen Barrier (OTR) | $< 0.1\text{ cc/m}^2/\text{24hr}$ (Zero transmission) | $< 0.5 – 1.0\text{ cc/m}^2/\text{24hr}$ (Ultra-high barrier) |
| Moisture Barrier (WVTR) | $< 0.1\text{ g/m}^2/\text{24hr}$ | $< 1.0 – 1.5\text{ g/m}^2/\text{24hr}$ |
| Visual Appearance | Solid metallic silver (opaque) | Transparent with high clarity, or white opaque |
| Packaging Machinery Speed | Maximum line speed | Compatible with minor temperature calibration |
| Regulatory Future-Proofing | Subject to escalating European packaging taxes | Fully compliant with EU PPWR 2030 circular mandates |
Designing Closures & Fitments for 100% Mono-Material Integrity
A common pitfall in mono-material packaging design is attaching incompatible closures:
- Resealable Zippers: Traditional zippers made from mixed resins contaminate the recycling batch. Recyclable mono-material pouches must specify 100% all-PE zippers that melt cohesively with the pouch body during mechanical reprocessing.
- Spouts & Fitments: Liquid pouches must integrate injection-molded all-PE spouts and caps, ensuring the entire container is mechanically shredded and re-extruded without sorting bottlenecks.
Review related circular carrying solutions in our guide to EU PPWR compliance.
