Flexible Pouch Zipper Profiles: Powder-Proof & Moisture Lock Guide
In modern consumer packaged goods (CPG), the reclosable zipper has transitioned from an optional luxury to an essential functional expectation. Whether packaging whey protein isolate, specialty matcha, artisanal bath salts, pet treats, or dried fruits, consumers demand a closure that reseals effortlessly, protects freshness, and provides reassuring sensory confirmation.
However, specifying a flexible pouch zipper is not a one-size-fits-all purchasing decision. When fine powders (such as micronized collagen or flour) or moisture-sensitive contents are packed, a standard single-track zipper frequently fails. Particulates clog the female interlocking groove, preventing closure engagement and leaving the package exposed to ambient humidity and spoilage.
To prevent closure failure, packaging engineers specify specialized profile geometries: powder-proof de-flaking zippers, dual-track tactile locks, and hermetic moisture-barrier closures.
This engineering guide examines zipper profile mechanics, powder expulsion physics, ultrasonic crush sealing at side gussets, and burst-retention thresholds.
1. Quick Engineering Benchmark Matrix
| Zipper Profile Category | Single-Track Hook & Arrow | Dual-Track Press-to-Close | Powder-Proof De-Flaker Zipper | Hermetic Moisture Lock |
|---|---|---|---|---|
| Profile Architecture | Single male arrow + female channel | Parallel twin interlocking tracks | Segmented micro-channeled teeth | Coextruded elastomeric sealing rib |
| Powder Clogging Resistance | Poor (Cluttered by fine grains) | Moderate (Secondary track backup) | Superior (Self-clearing channels) | High (Wipe-clean surface) |
| Acoustic & Tactile Feedback | Subtle / Quiet | Distinct audible clicking | Noticeable tactile snap | Continuous smooth seal |
| Internal Burst Resistance | Moderate (15 – 25 N/15mm) | High (30 – 45 N/15mm) | High (28 – 40 N/15mm) | Extreme (> 50 N/15mm) |
| Moisture / Odor Seal | Standard reclose | Enhanced mechanical seal | Enhanced mechanical seal | Hermetic gas/moisture shield |
| Best-Fit Products | Dried fruit, beef jerky, candy | Granola, pet treats, lawn seeds | Whey protein, cocoa, matcha, flour | Bath salts, effervescent tabs, wipes |
Explore compatible bag formats in our Stand-Up Pouches Category and Flat Bottom Pouches Category.
2. Profile Mechanics & Powder Expulsion Physics
The primary failure mode in powder packaging is interference compaction:
┌────────────────────────────────────────────────────────────────────────┐
│ POWDER CLOGGING VS DE-FLAKER DYNAMICS │
├───────────────────────────────────┬────────────────────────────────────┤
│ STANDARD ZIPPER (CLOGGED) │ POWDER-PROOF DE-FLAKER ZIPPER │
├───────────────────────────────────┼────────────────────────────────────┤
│ │ │
│ ▲ MALE │ ▲ MALE │
│ / \ │ / \ │
│ │ │ │ │ │ │
│ ────┴───┴──── │ ────┴───┴──── │
│ ░░░░░░░░░░░░░ POWDER │ ░░░ │ │ ░░░ │
│ ┌───────────┐ PACKS SOLID │ ┌───┼───┼───┐ │
│ │ █ █ █ █ █ │ │ │ ◄─┴───┴─► │ DE-FLAKING │
│ └───────────┘ │ └───┬───┬───┘ PORTS EXPEL │
│ ▼ FEMALE │ ▼ FEMALE POWDER OUT │
│ │ │
│ • Powder compacts inside groove │ • Segmented teeth create lateral │
│ • Male arrow cannot penetrate │ relief channels │
│ • Zipper pops open immediately │ • Finger pressure ejects powder │
│ │ • 100% positive mechanical lock │
│ │ │
└───────────────────────────────────┴────────────────────────────────────┘The Powder-Proof De-Flaker Mechanism
Standard continuous zipper profiles form a dead-end trough. When protein powder enters the female cavity, consumer pinching compresses the powder into a dense brick, blocking the male barb from seating.

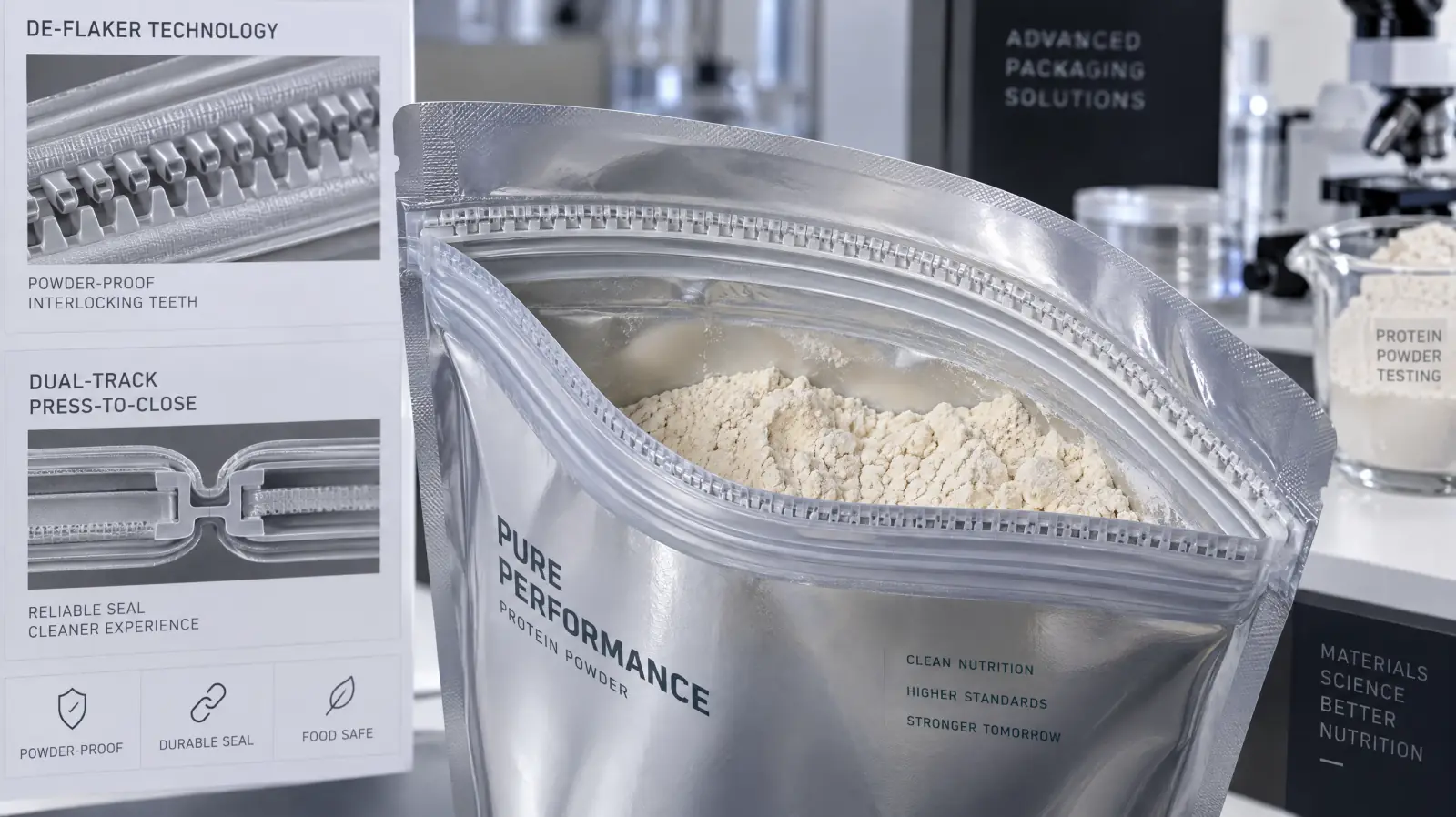

In contrast, powder-proof zippers feature laser-cut or mold-notched segmented teeth with lateral discharge flutes:
- When the consumer slides their fingers across the zipper track, the descending male teeth displace accumulated powder laterally through micro-vents back into the pouch interior.
- The interlocking hook clears the debris, seating firmly into the female undercut with a crisp tactile click.
3. Hermetic Moisture Locks & Multi-Track Seals
For hygroscopic products (such as effervescent drink powders, freeze-dried fruits, and laundry pods), atmospheric water vapor ingress ruins product shelf stability within days of first opening:
┌────────────────────────────────────────────────────────────────────────┐
│ HERMETIC DUAL-TRACK BARRIER ZIPPER PROFILE │
├────────────────────────────────────────────────────────────────────────┤
│ │
│ Front Pouch Wall │
│ ══════════════════════════════════════════════════════ │
│ │ │ │ │ │ │
│ ┌──┴─┴──┐ ┌──┴─┴──┐ ┌──┴──┐ │
│ │ TRACK │ │ TRACK │ │ ELASTOMERIC │
│ │ 1 │ │ 2 │ │ SEAL BEAD │
│ └──┬─┬──┘ └──┬─┬──┘ └──┬──┘ │
│ │ │ │ │ │ │
│ ══════════════════════════════════════════════════════ │
│ Back Pouch Wall │
│ │
│ • Track 1 & 2: Dual mechanical barbed hooks resist opening pressure │
│ • Elastomeric Bead: Compresses under closure tension to create a │
│ gas-tight capillary barrier blocking moisture vapor penetration │
│ │
└────────────────────────────────────────────────────────────────────────┘- Dual-Track Stability: Two parallel tracks provide double the opening force resistance (from the inside), preventing accidental pouch bursting if dropped.
- Elastomeric Gaskets: Incorporating an extruded thermoplastic elastomer (TPE) rib adjacent to the zipper track creates a gasket-like seal that limits moisture transmission even after the initial heat-seal header has been torn off.
For safety-mandated closures, compare with our Child-Resistant Pouch Zippers Guide.
4. Ultrasonic Zipper Crush: Eliminating Side-Seal Leak Channels
The greatest technical hurdle in manufacturing zippered flexible pouches is sealing the zipper ends into the side seams:
THE "LEAK TUNNEL" AT SIDE SEAMS
┌──────────────────────────────────────────────────────────────┐
│ Pouch Front Film (120µm) │
│ ══════════════════════════════════════════════════════════ │
│ [ Z I P P E R P R O F I L E (1.5mm) ] │
│ ══════════════════════════════════════════════════════════ │
│ Pouch Back Film (120µm) │
│ │
│ PROBLEM: Thick plastic profile creates a 1.5mm gap step! │
│ Molten PE sealant cannot bridge step without burning outer │
│ PET film. RESULT: Pinhole gas/moisture leak channel. │
└──────────────────────────────────────────────────────────────┘The Ultrasonic Solution
To eliminate the leak tunnel, high-speed pouch-making machines deploy an ultrasonic crush station ahead of the perimeter heat-seal bars:
- High-Frequency Vibration (20 kHz to 35 kHz): An acoustic horn applies micro-vibrations specifically to the left and right 10mm ends of the zipper track under controlled anvil pressure.
- Internal Molecular Friction: Kinetic energy melts the thick polyethylene zipper teeth from the inside out in under 150 milliseconds, collapsing the 1.5mm profile into a flat, paper-thin resin film.
- Flawless Perimeter Welding: When the pouch web moves into the main heated sealing jaws, the crushed zipper ends weld seamlessly with the side perimeter films without pinholes, burn marks, or delamination.
5. Zipper Flange Resin Selection & MFI Matching
A zipper cannot bond securely to pouch walls if the polymer resins are chemically incompatible:
- Melt Flow Index (MFI) Harmony: The zipper flange resin must match the thermal characteristics of the pouch inner sealant layer. For metallocene LLDPE pouch liners, zippers extruded from specialized LLDPE/Plastomer blends (MFI: 2.0 to 3.5 g/10min) ensure rapid thermal interdiffusion at converting temperatures of 140°C to 160°C.
- Mono-Material Recyclability (EU PPWR): In traditional packaging, zippers were occasionally extruded from EVA copolymers that contaminated PE recycling streams. CraftPack Global manufactures 100% Mono-PE and Mono-PP zippers, ensuring the entire pouch qualifies for closed-loop curbside recycling.
Learn more about circular substrates in our MDO-PE Recyclable Films Guide.
6. Engineering Specification Checklist for Resealable Pouches
When configuring zipper specifications for your packaging line:
- Specify Particle Characteristics: If packaging powders with particle sizes < 150 microns, mandate powder-proof de-flaker zippers.
- Determine Reclose Cycle Frequency: For multi-serving pet foods or 2 kg protein tubs requiring 30+ reclose cycles, specify reinforced dual-track profiles.
- Verify Ultrasonic Crush Quality: Audit pouch side seams using dye penetration testing (ASTM F1929) to ensure zero capillary leak channels at zipper terminations.
- Choose Flange Width: Select 10mm flanges for small pouches (< 250g) and 13mm–15mm wide flanges for bulk pouches (> 1 kg) to distribute pouch-opening tensile stress.
