Metal Eyelets vs Punched Holes in Luxury Eurotote Bags
In premium retail packaging, luxury boutique paper shopping bags—commonly referred to in the trade as Eurotote Bags—are tactile brand ambassadors. Unlike commodity SOS grocery bags, Eurototes feature heavyweight art board (210 to 300 GSM), top turnover reinforcement cards, and hand-finished cord, grosgrain ribbon, or herringbone cotton handles.

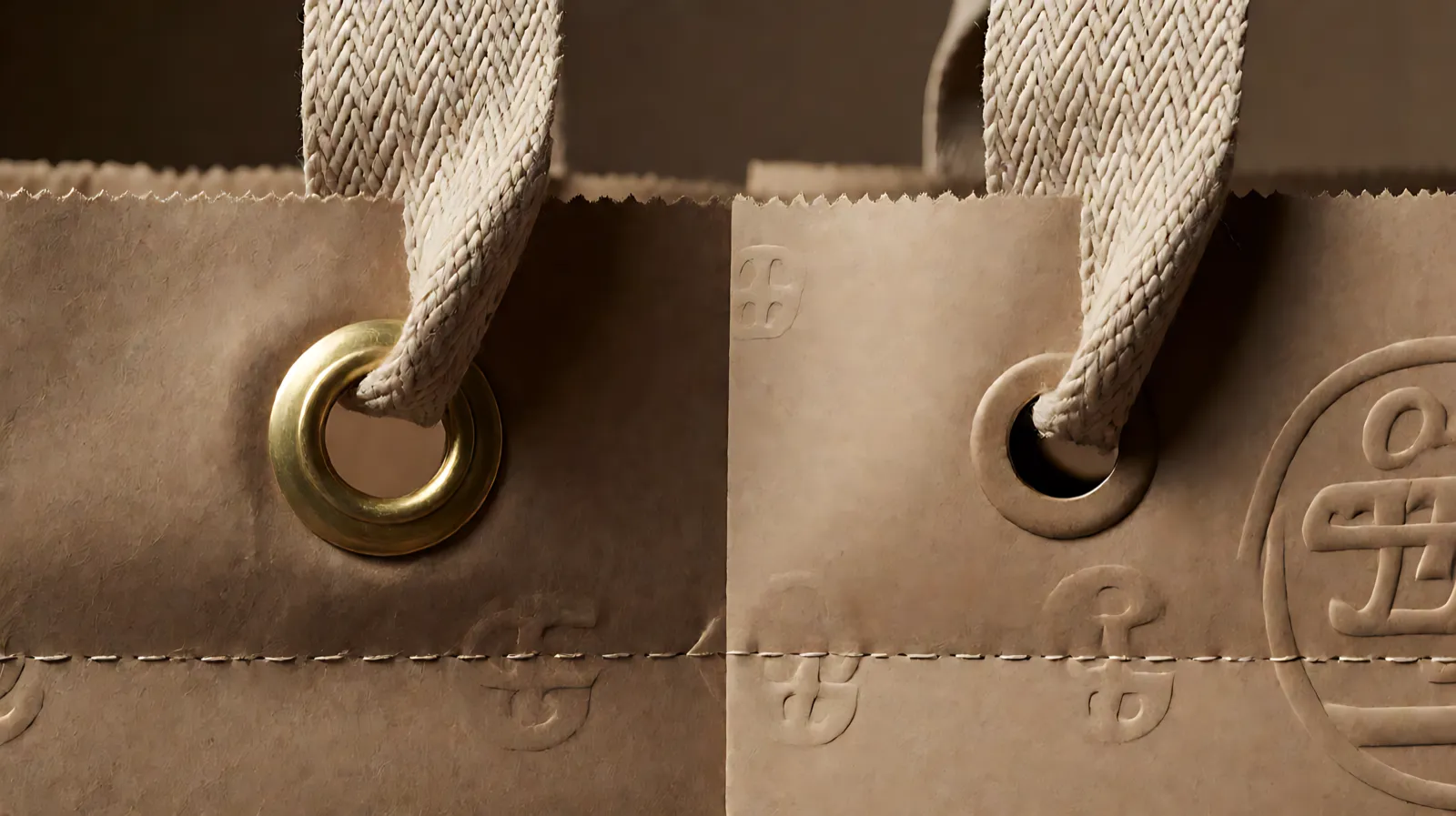

When engineering the handle anchor system, brand designers and packaging buyers encounter a pivotal design choice: Metal Eyelets (Grommets) versus Clean Die-Cut Punched Holes.
Historically, polished brass or nickel eyelets were the universal signifier of bespoke luxury, reinforcing the handle hole against tear-out under heavy loads. However, the introduction of the EU Packaging and Packaging Waste Regulation (PPWR) and stricter corporate ESG circularity standards has forced a reevaluation: metal hardware creates non-recyclable contaminants in municipal paper recycling hydropulpers.
This technical guide evaluates handle tensile pull-out forces, turnover card beam strength, manufacturing unit economics, and circular recyclability.
1. Quick Engineering Benchmark Matrix
| Engineering Metric | Metal Eyelets (Brass / Aluminum Grommets) | Clean Die-Cut Punched Holes (Reinforced) | Hidden Tunnel Ribbon Slots |
|---|---|---|---|
| Aesthetic Presentation | Metallic luxury hardware accent (Gold/Silver/Gunmetal) | Minimalist, modern, clean paper architecture | Invisible hardware; seamless ribbon exit |
| Handle Tear-Out Strength | 180 N to 260 N per handle hole | 150 N to 210 N (with 400 GSM card) | 120 N to 170 N (Adhesive anchored) |
| Edge Fraying / Friction | Zero rope abrasion (Smooth metal radius) | Moderate friction against paper edge | Low friction |
| CEPI Recyclability Status | Contaminant (Requires manual removal before repulping) | 100% Curbside Recyclable (Mono-material) | 100% Curbside Recyclable |
| PPWR Recyclability Grade | Grade C / Penalty Levy (Multi-material) | Grade A (100% High-yield paper stream) | Grade A (100% Paper stream) |
| Production Speed & Cost | Slower (Semi-automatic eyelet punching, +$$) | Fast (Inline rotary die-cut punch, $) | Moderate (Manual ribbon taping) |
| Corrosion / Humidity Risk | Tarnishing risk in humid ocean shipping container | Zero corrosion risk | Zero corrosion risk |
Explore luxury retail formats in our Custom Printed Gift Bags Category and Paper Shopping Bags Category.
2. Structural Mechanics: Handle Tension and Turnover Rims
The handle anchor point experiences concentrated shear and peeling vectors when a shopper carries heavy luxury goods (perfume bottles, jewelry boxes, premium footwear):
┌────────────────────────────────────────────────────────────────────────┐
│ HANDLE PULL ANCHOR LOAD MECHANICS │
├───────────────────────────────────┬────────────────────────────────────┤
│ METAL EYELET ARCHITECTURE │ REINFORCED PUNCH HOLE ARCHITECTURE│
├───────────────────────────────────┼────────────────────────────────────┤
│ │ │
│ Outer Paper Wall (250 GSM) │ Outer Paper Wall (250 GSM) │
│ ┌───────────────────────────┐ │ ┌───────────────────────────┐ │
│ │ ╔═════════╗ Flanged Brass │ │ │ ╭───╮ Clean Die-Cut │ │
│ │ ║ Eyelet ║ Grommet │ │ │ │ │ 6mm Diameter │ │
│ │ ╚═════════╝ │ │ │ ╰───╯ │ │
│ │ 400 GSM Turnover Board │ │ │ 450 GSM Virgin Kraft Board│ │
│ └───────────────────────────┘ │ └───────────────────────────┘ │
│ │ │ │ │
│ ▼ │ ▼ │
│ [ Knotted Cord / Ribbon ] │ [ Knotted Cord / Ribbon ] │
│ │ │
│ • Metal flange clamps board │ • High-density card absorbs shear│
│ • Spreads stress over 12mm ring │ • Hole edge calendered smooth │
│ • Requires separate sorting │ • 100% mono-material recycling │
└───────────────────────────────────┴────────────────────────────────────┘1. Metal Eyelet Mechanics
Metal eyelets consist of a two-piece barrel and washer stamped through the bag wall and turnover rim. The flanged rim creates a rigid clamping force across a 12mm to 16mm diameter circle.
- Advantage: The smooth rounded throat of the eyelet protects soft cotton or polypropylene cords from abrasive saw-tooth friction during walking gait oscillations.
- Failure Mode: Under extreme overload (>260 N), the eyelet does not bend; instead, the entire circular grommet punches a catastrophic hole through the surrounding paperboard.
2. Reinforced Punched Hole Mechanics
In modern minimalist Eurototes, holes (typically 5mm to 7mm diameter) are cleanly die-cut directly through both the outer bag paper and the internal turnover reinforcement card.
- The Secret to Strength: The turnover card must utilize uncoated virgin Scandinavian kraft board (400 to 500 GSM) with high internal tear resistance (Elmendorf tear >1,800 mN). Cheap recycled greyboard will split and tear under modest loads (<90 N).
- When properly specified, a reinforced punched hole withstands over 180 N of vertical pull force, exceeding the typical 8kg to 12kg carry limit of luxury retail packaging.
For structural details on turnover card reinforcement, read our guide on Cardboard Bases and Turnover Rims: Luxury Gift Bag Architecture.
3. The Circularity Dilemma: EU PPWR Compliance
Under the EU Packaging and Packaging Waste Regulation (PPWR), packaging entering European markets is graded on recyclability:
Recycling Mill Pulper Behavior:
──────────────────────────────────────────────────────────────────────────
Feature Eurotote with Metal Eyelets Eurotote with Punched Holes
──────────────────────────────────────────────────────────────────────────
Municipal Bin Sorting Paper Stream Paper Stream
Hydropulper Screen Metal grommets clog ragger Fibers disintegrate 100%
Vibrating Sieve Waste High rejection scrap rate Zero metal contaminant
Fiber Recovery Yield 82% > 96% Virgin Pulp Yield
EPR Packaging Tax Higher (Multi-material tier) Lowest (Mono-material paper)
──────────────────────────────────────────────────────────────────────────When bags containing metal eyelets enter standard paper recycling mills, the metal grommets settle into pulper sumps, damaging high-speed centrifugal pumps and jamming ragger lines. As packaging taxes penalize mixed-material assemblies, global luxury brands (Gucci, Apple, Sephora) are phasing out metal eyelets in favor of 100% mono-material reinforced paper punch holes.
4. Cost and Production Speed Comparison
Production Comparison for 20,000 Luxury Eurotote Bags:
──────────────────────────────────────────────────────────────────────────
Manufacturing Step With Brass Eyelets (4 / bag) Reinforced Punched Holes
──────────────────────────────────────────────────────────────────────────
Hardware Component Cost $0.032 / bag ($800 total) $0.000 / bag ($0 total)
Labor / Insertion Cycle Semi-manual pneumatic punch Inline automated die-cut
Production Throughput 1,200 bags / hour 4,500 bags / hour
Total Unit Packaging Premium +12% to +18% Baseline Standard
──────────────────────────────────────────────────────────────────────────Eliminating metal eyelets shortens lead times by 3 to 5 business days and significantly reduces tooling and assembly costs.
5. Engineering Specification Checklist
When ordering custom Eurotote paper bags, specify the following parameters:
- Turnover Rim Cardboard: Minimum 400 GSM virgin folding box board (FBB) or kraft linerboard to prevent punch hole tearing.
- Hole Caliper & Placement: Position holes at least 25mm below the top bag fold to maintain tensile strength along the paper grain.
- Handle Fastening: Pair punched holes with knotted 3-ply cotton rope, knotted grosgrain ribbon, or plastic barb clip ends designed for instant paper engagement.
To design bespoke Eurotote packaging or request paper tensile test samples, contact the engineering team at CraftPack Global Contact.
