Kraft Paper GSM vs Bursting Strength: Mullen & Cobb Testing Guide
In retail shopping bags, food delivery sacks, and e-commerce paper mailers, brand buyers and procurement teams frequently evaluate paper quality using a single metric: basis weight (GSM, grams per square meter).
However, relying solely on GSM is a costly procurement mistake. Two 120 GSM kraft paper sheets can exhibit radically different physical load limits: a virgin Scandinavian softwood kraft sheet can comfortably hold 12 kg of retail merchandise, while a 120 GSM recycled paper sheet made from short recycled fibers may tear under 4 kg.

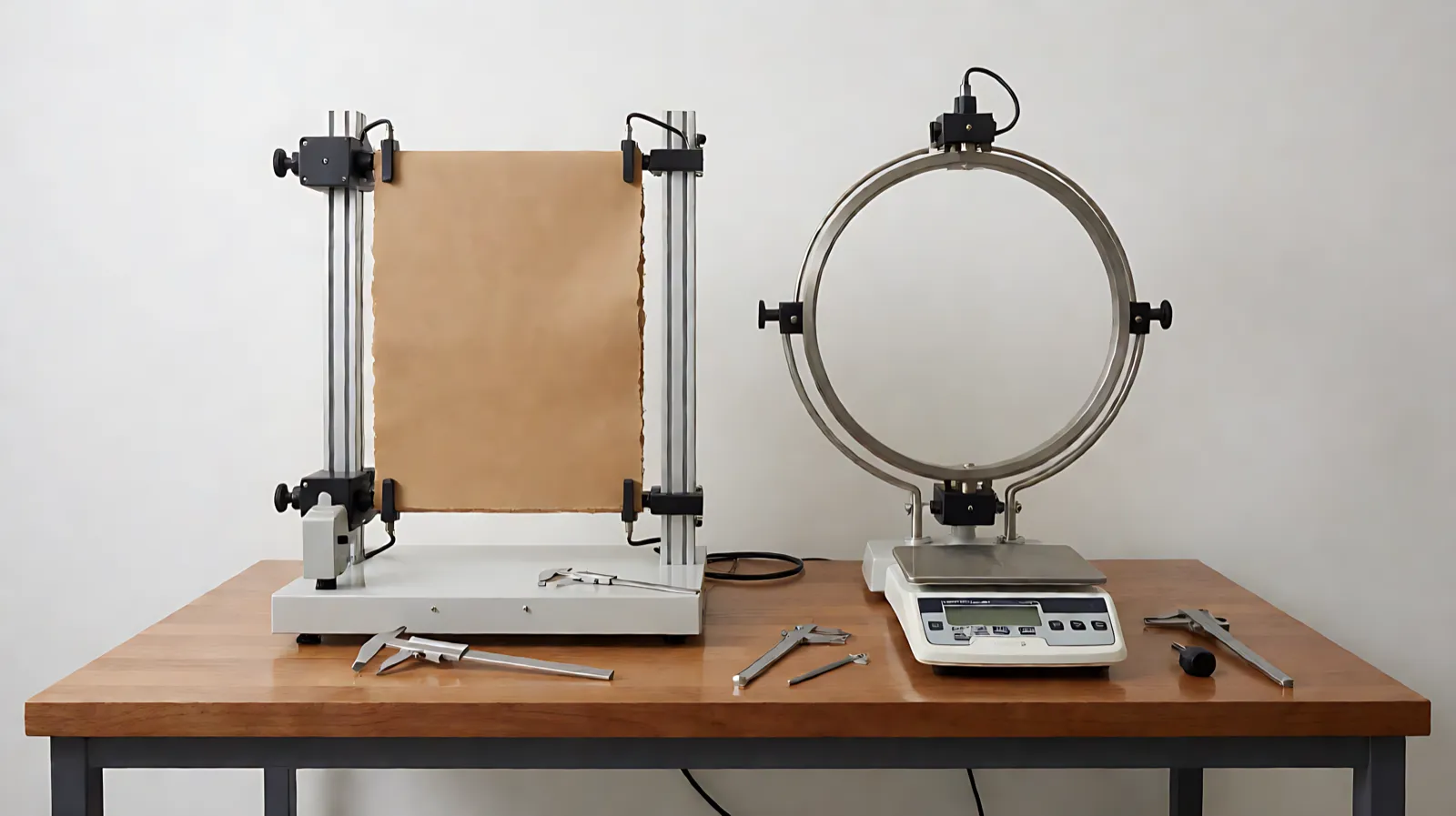

To specify durable paper bags that resist puncture, handle tear-out, and humidity collapse, packaging engineers rely on two fundamental physical testing standards: the Mullen Burst Test (ISO 2758 / TAPPI T403) and the Cobb Water Absorption Test (ISO 535 / TAPPI T441).
This technical guide analyzes the physical relationship between paper grammage, bursting index, sizing chemistry, and real-world load capacity in commercial paper bags.
1. Quick Engineering Benchmark Matrix: Virgin vs. Recycled Kraft Paper
| Paper Quality Metric | Virgin Kraft (Unbleached) | Bleached White Kraft | Semi-Recycled Kraft (50% PCW) | 100% Recycled Kraft (Testliner) |
|---|---|---|---|---|
| Fiber Source | 100% Long-fiber virgin softwood | Bleached chemical softwood pulp | 50% Virgin / 50% Post-consumer waste | 100% Repulped mixed paper waste |
| Common GSM Range | 80 to 180 g/m² | 90 to 180 g/m² | 100 to 200 g/m² | 110 to 220 g/m² |
| Mullen Burst Index (kPa·m²/g per ISO 2758) |
3.8 to 4.8 (Exceptional strength) | 3.2 to 4.0 | 2.2 to 2.8 | 1.4 to 2.0 (Low puncture limit) |
| Cobb 60 Value (g/m² per ISO 535 @ 60s) |
22 to 30 (Highly water-repellent) | 25 to 35 | 35 to 50 | 65 to 90 (Rapidly absorbs moisture) |
| MD/CD Tensile Ratio | 1.8 : 1 to 2.2 : 1 | 1.8 : 1 to 2.1 : 1 | 1.5 : 1 to 1.8 : 1 | 1.3 : 1 to 1.6 : 1 |
| Tear Resistance (Elmendorf) (mN per TAPPI T414) |
> 1,200 mN | > 950 mN | > 650 mN | > 420 mN |
| Safe Load Capacity (120 GSM) | 8 to 12 kg (Retail groceries) | 7 to 10 kg | 4 to 6 kg | 2 to 3.5 kg (Risk of bottom tear) |
| EUDR & FSC Certification | FSC 100% / EUDR Compliant | FSC Mix | FSC Recycled | FSC Recycled |
Explore standard paper bag architectures in our Paper Shopping Bags Category and Food Service Bags Category.
2. The Mullen Burst Test: Mechanical Physics & Burst Index
The Mullen burst test measures the multidirectional hydraulic pressure required to rupture a circular clamping area of paper.
┌────────────────────────────────────────────────────────────────────────┐
│ MULLEN BURST TESTING MECHANICS │
├───────────────────────────────────┬────────────────────────────────────┤
│ CLAMPED SPECIMEN │ HYDRAULIC RUPTURE DYNAMICS │
├───────────────────────────────────┼────────────────────────────────────┤
│ Rigid Annular Clamp │ Paper Rupture Dome │
│ (Ø 30.5mm Hole) │ ╭─╮ │
│ ═══════ ═══════ │ ╭╯ ╰╮ │
│ ░░░░░░░░░░░░░░░░░░░ │ ░░░░░░░░╯ ╰░░░░░░░ │
│ ─────────────────── │ ──────────────────── │
│ Elastic Diaphragm │ Expanded Diaphragm │
│ ▲ │ ▲ │
│ │ │ │ │
│ Glycerin Hydraulic │ Hydraulic Pressure │
│ Pressure (95 ml/min) │ Spike Measured (kPa) │
│ │ │
│ • Uniform fluid pressure rise │ • Measures fiber network bonding │
│ • Multi-axial stress across web │ • Direct proxy for bag drop shock│
└───────────────────────────────────┴────────────────────────────────────┘The Burst Index Formula
Bursting pressure ($P_{burst}$, in kilopascals) scales with basis weight ($W$, in $g/m^2$). To compare paper grades independently of thickness, engineers calculate the Burst Index ($X$):
$$X = \frac{P_{burst}}{W} \quad [\text{kPa}\cdot\text{m}^2/\text{g}]$$
- A high-grade virgin kraft paper achieves a burst index of 4.2 kPa·m²/g. A 120 GSM sheet withstands $120 \times 4.2 \approx 504\text{ kPa}$ (~73 psi) of hydrostatic burst pressure.
- A recycled testliner typically achieves only 1.8 kPa·m²/g. A 120 GSM recycled sheet withstands only $120 \times 1.8 \approx 216\text{ kPa}$ (~31 psi).
Why Recycled Fibers Suffer Lower Burst Strength
Every time cellulose fiber is repulped, dried, and recycled, it undergoes hornification—an irreversible loss of swelling capacity and hydrogen-bonding potential. Micro-fibrils shorten from approximately 3.5 mm down to under 1.2 mm. Shorter fibers produce fewer mechanical interlocks, reducing resistance to puncture from sharp cardboard box corners or retail goods.
For handle attachment reinforcement options, review our Twisted Paper vs Cotton Rope Handles Guide.
3. The Cobb 60 Test: Water Absorption & Humidity Resistance
In food takeaway and grocery distribution, rain, ice melt, and condensation from cold beverage containers can weaken paper packaging. Paper that absorbs water loses up to 80% of its tensile strength within minutes.
The Cobb Test (ISO 535) measures the mass of water absorbed by a 100 cm² paper sample over a specified exposure duration (typically 60 seconds, designated as Cobb 60):
Cobb 60 Formula:
Cobb Value = (W2 - W1) × 100 [g/m²]
Where W1 = Dry specimen weight, W2 = Wet blotted weight.Cobb 60 Absorption Rates & Practical Implications:
──────────────────────────────────────────────────────────────────────────
Cobb 60 (g/m²) Sizing Level Performance in Takeaway & Rain
──────────────────────────────────────────────────────────────────────────
< 25 g/m² Heavy Sizing (AKD) High water bead-off; survives condensation
25 to 35 g/m² Standard Sizing Ideal for retail grocery bags
40 to 60 g/m² Light Sizing Acceptable for dry apparel retail only
> 75 g/m² Water-Sensitive Collapses under cold takeaway drinks
──────────────────────────────────────────────────────────────────────────Internal Sizing Agents (AKD vs. ASA)
To achieve a low Cobb value (< 28 g/m²), mills introduce internal hydrophobic sizing agents into the wet-end pulp slurry:
- Alkyl Ketene Dimer (AKD): Reacts with cellulose hydroxyl groups to create a hydrophobic waxy surface. Provides long-lasting water repellency without affecting paper recyclability or composting.
- Alkenyl Succinic Anhydride (ASA): Fast-curing synthetic sizing agent preferred in high-speed papermaking machines.
For greaseproof barrier performance on fast-food bags, see our Water-Based Barrier Coatings vs PE Extrusion Guide.
4. Bag Architecture & Handle Tear-Out Prevention
Bag failure rarely occurs in the middle of a flat wall; it occurs at stress concentration points: the handle attachment rim and the bottom fold glue line.
┌─────────────────────────────────────────────────────────────────────────┐
│ BAG ARCHITECTURE & HANDLE LOAD PATHS │
│ │
│ ╭───────────────────────────────╮ │
│ │ Turnover Top Rim (35-45mm) │ ◄── Double paper layer │
│ │ ┌───────────────────────┐ │ distributes shear force │
│ │ │ 250 GSM Reinforce Card│ │ ◄── Heavy patch card glued │
│ │ └───────────────────────┘ │ over handle rope tails │
│ │ │ │
│ │ Paper Body (Virgin Kraft) │ ◄── Machine Direction (MD) │
│ │ 120 - 150 GSM │ oriented vertically for │
│ │ │ maximum tensile strength │
│ │ │ │
│ ╰──────────────┬────────────────╯ │
│ │ │
│ ╭──────────────┴────────────────╮ │
│ │ Hexagonal SOS Bottom Base │ ◄── Cross-glued seams with │
│ │ (Optional 350 GSM Base Card) │ hot-melt metallocene glue │
│ ╰───────────────────────────────╯ │
└─────────────────────────────────────────────────────────────────────────┘Critical Bag Engineering Rules:
- Machine Direction (MD) Orientation: Paper has 1.8x to 2.2x higher tensile strength along the Machine Direction (MD) than across the Cross Direction (CD). Bags must be converted so that MD runs vertically from handle to base.
- Top Turnover Hem (Turnover Rim): Luxury Eurotote bags fold 35mm to 45mm of paper back into the interior, reinforced by a 250–350 GSM greyboard card. This converts shear pull on the handle into compressive force across the upper rim. For construction schematics, see Cardboard Bases and Turnover Rims in Luxury Bags.
- Handle Patch Shear Testing: Handle attachments must withstand a minimum vertical pull force of 150 N (~15.3 kgf) per handle pair under continuous tensile loading.
5. Paper Specification Guide by Commercial Use Case
| Commercial Application | Recommended GSM | Required Mullen Burst | Target Cobb 60 | Recommended Paper Grade |
|---|---|---|---|---|
| Boutique Fashion & Luxury Retail | 160–210 GSM | $\ge 580\text{ kPa}$ | $< 25\text{ g/m²}$ | Bleached Virgin Kraft or SBS White Art Paper |
| Supermarket & Grocery Carryout | 110–130 GSM | $\ge 450\text{ kPa}$ | $< 30\text{ g/m²}$ | Natural Virgin Brown Kraft (Long-Fiber) |
| Bakery & Fast Food Takeaway | 70–90 GSM | $\ge 280\text{ kPa}$ | $< 28\text{ g/m²}$ | Greaseproof Treated Virgin Kraft (TAPPI Kit 7) |
| Heavy E-Commerce Paper Mailers | 120–150 GSM (2-ply) | $\ge 700\text{ kPa}$ | $< 22\text{ g/m²}$ | Extensible Sack Kraft (High Clupak Stretch) |
| Promotional & Event Swag Bags | 100–120 GSM | $\ge 220\text{ kPa}$ | $< 50\text{ g/m²}$ | 100% Recycled Brown Kraft (Cost-Effective) |
Explore customized bag specifications across our Custom Eurotote Paper Bags and Paper Takeaway Bags.
6. Frequently Asked Questions (FAQ)
What is the difference between standard kraft paper and “extensible” sack kraft?
Extensible sack kraft paper undergoes mechanical micro-creping (the Clupak process) during papermaking. This imparts 6% to 8% stretch in the machine direction, allowing heavy industrial sacks (10kg–25kg) to absorb drop impact energy without bursting, even at lower basis weights.
Can recycled kraft paper meet EU PPWR standards?
Yes. EU PPWR strongly encourages post-consumer recycled (PCR) content in packaging. However, when using recycled paper for retail carrier bags, converters must increase basis weight by 20% to 30% (e.g., using 140 GSM recycled kraft instead of 110 GSM virgin kraft) to achieve equivalent Mullen burst strength.
How do I verify paper grammage on incoming bulk container shipments?
Quality control inspectors extract $100\text{ mm} \times 100\text{ mm}$ square specimens using precision circular sample cutters per ISO 536. Samples are conditioned at 23°C and 50% relative humidity for 24 hours before weighing on a digital balance with 0.001g precision.
