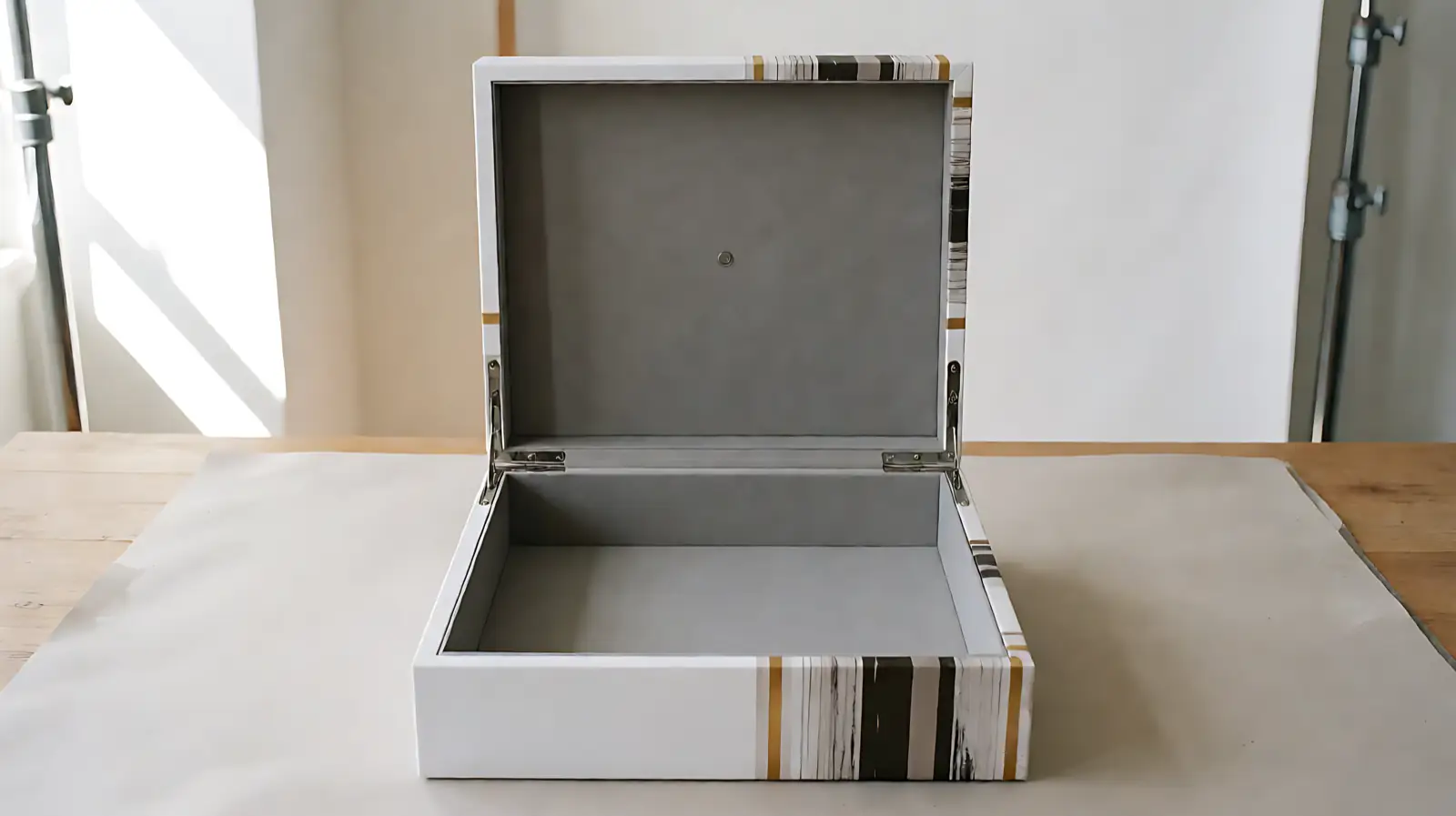

Greyboard Caliper & V-Groove Engineering for Luxury Rigid Boxes
In luxury packaging—spanning high-end jewelry, prestige perfumery, spirits, and premium electronics—the rigid box (setup box) is an unmistakable physical statement of brand value. Unlike lightweight folding cartons that ship flat and pop into shape, a rigid box possesses permanent three-dimensional heft, tactile density, and an airtight telescoping or magnetic closure.
However, producing a flawless luxury rigid box is an exacting discipline of structural paperboard mechanics. Packaging procurement teams frequently encounter two critical quality defects:
- Lid Warping & Curvature: Humidity changes cause box panels to bend inward or outward, ruining lid closure alignment.
- Blunt, Rounded Corners: Inexpensive die-scoring produces soft, bulging edges rather than the razor-sharp, architectural lines demanded by luxury houses.
To achieve structural perfection, luxury packaging engineers specify precise greyboard caliper and density ratings, CNC V-grooving angles, and moisture-balanced protein adhesives.
This engineering guide analyzes paperboard density mechanics, V-grooving physics, warp-prevention adhesive chemistry, and concealed magnetic closure integration.
1. Quick Engineering Benchmark Matrix
| Structural Parameter | Die-Scored Folding Greyboard | Precision 90° V-Grooved Greyboard | Solid Bleached Sulfate (SBS Board) |
|---|---|---|---|
| Corner Edge Geometry | Rounded, blunt radius (1.5mm – 2.5mm) | Razor-sharp 90° architectural edge | Thin crease fold (< 0.8mm) |
| Standard Caliper Range | 1.0mm to 1.8mm (600 – 1200 GSM) | 1.5mm to 3.0mm (1000 – 2200 GSM) | 0.35mm to 0.70mm (250 – 500 GSM) |
| Fiber Density Range | 0.60 – 0.68 g/cm³ (Standard chipboard) | 0.75 – 0.85 g/cm³ (High-density greyboard) | 0.70 – 0.80 g/cm³ |
| Panel Warp Resistance | Moderate (Susceptible to glue moisture) | Superior (High stiffness, low water uptake) | Low (Thin board bows easily) |
| Tooling & Setup Process | Standard steel rule die cutting | Rotary or flatbed CNC carbide V-cutters | Standard die-cutting press |
| Concealed Magnet Flushness | Difficult (Creates visible bulge under wrap) | Flawless (CNC pocket milled into core) | Not applicable |
| Best-Fit Luxury Formats | E-commerce mailer boxes, retail apparel | Prestige jewelry, watches, spirits, tech | Folding cosmetic cartons |
Explore luxury carrier packaging in our Gift Bags Category and Cardboard Bases & Turnover Rims Guide.
2. Corner Geometry: Die-Scoring vs. Precision V-Grooving
The visual difference between an ordinary gift box and a true luxury presentation box lies in how the corners are folded:
┌────────────────────────────────────────────────────────────────────────┐
│ CORNER FOLDING ARCHITECTURE COMPARISON │
├───────────────────────────────────┬────────────────────────────────────┤
│ TRADITIONAL DIE-CUT SCORE │ PRECISION 90° V-GROOVE │
├───────────────────────────────────┼────────────────────────────────────┤
│ │ │
│ Steel blade compresses board: │ Carbide blade carves V-trough: │
│ │ │
│ | | │ \ / │
│ | | │ \ 90° / │
│ └───┘ Crease │ \ / │
│ ═════════════════════════════ │ ═════════════───══════════════ │
│ When folded: │ When folded: │
│ • Crushed fibers bulge outward │ • Zero material interference │
│ • Corner is soft & rounded │ • Sharp, crisp, seamless 90° │
│ • Radius: 1.5mm – 2.5mm │ • Radius: < 0.2mm │
│ │ │
└───────────────────────────────────┴────────────────────────────────────┘The Die-Scoring Defect
When a 2.0mm thick greyboard is creased with a standard steel rule die, paperboard fibers are compressed. When folded at 90 degrees, the compressed inner mass pushes against itself, forcing the outer corner to bulge outwards into an unsightly, rounded curve.
The CNC V-Grooving Solution
In V-grooving, high-speed rotary carbide cutters shave a triangular trough through 85% to 90% of the greyboard thickness:
- For a 90° corner fold, a precise 90-degree V-notch is carved out, leaving only a micro-thin 0.2mm to 0.3mm paper layer acting as a flexible hinge.
- When folded, the two beveled 45° greyboard shoulders meet with zero resistance, forming a solid, seamless, razor-sharp 90-degree vertical edge.
- For multi-panel collapsible rigid boxes, 120-degree or 130-degree V-grooves allow panels to fold cleanly around adjacent layers without pinching.
3. Greyboard Caliper & Fiber Density Metrics
Greyboard is classified by thickness (caliper in millimeters or points) and basis weight (grams per square meter / GSM):
┌────────────────────────────────────────────────────────────────────────┐
│ LUXURY RIGID BOX GREYBOARD SPECIFICATION TABLE │
├─────────┬──────────┬───────────────┬───────────────────────────────────┤
│ CALIPER │ GSM │ DENSITY │ BEST-FIT LUXURY APPLICATION │
├─────────┼──────────┼───────────────┼───────────────────────────────────┤
│ 1.2 mm │ 800 GSM │ 0.67 g/cm³ │ Small jewelry, cufflinks, pens │
│ 1.5 mm │ 1000 GSM │ 0.72 g/cm³ │ Perfume bottles, skincare sets │
│ 2.0 mm │ 1400 GSM │ 0.78 g/cm³ │ Premium smartphones, watches │
│ 2.5 mm │ 1750 GSM │ 0.82 g/cm³ │ Spirits, wine, high-end audio │
│ 3.0 mm │ 2200 GSM │ 0.85 g/cm³ │ Heavy luxury books, heirloom sets │
└─────────┴──────────┴───────────────┴───────────────────────────────────┘Why Density Trumps Raw Thickness
Inexpensive, low-density greyboard contains loosely packed recycled fibers. While it may measure 2.0mm in caliper, it flexes under finger pressure, chips easily at the edges, and absorbs excessive adhesive moisture.
CraftPack Global specifies High-Density Greyboard (≥ 0.78 g/cm³) manufactured with virgin long-fiber virgin paperboard liners. High-density board provides exceptional flexural rigidity, dimensional stability, and edge-crush strength (ECT).
4. Warping Physics: Moisture Equilibrium & Adhesive Science
Lid warping is the primary reason rigid boxes are rejected during quality inspections:
WARPING MECHANICS (Differential Hygro-Expansion)
┌──────────────────────────────────────────────┐
│ WRAP PAPER (Specialty Art Paper, 120 GSM) │ ◄── Expands when wet
│ ══════════════════════════════════════════ │
│ [ WATER-BASED ADHESIVE GLUE LINE ] │
│ ────────────────────────────────────────── │
│ GREYBOARD CORE (1400 GSM) │ ◄── Rigid barrier
│ │
│ MECHANISM: Wet glue causes wrap paper to │
│ expand. As glue dries, paper shrinks with │
│ extreme tensile force, pulling the rigid │
│ greyboard inward into a bowed curve. │
└──────────────────────────────────────────────┘1. Adhesive Selection: Animal Jelly Glue vs. Cold PVA
- Cold Water-Based PVA: Contains 45%–55% water with slow setting times (30–60 seconds). Water soaks deep into greyboard fibers, causing severe board expansion and subsequent warp as it dries.
- Hot Animal Jelly Glue (Protein Adhesive): Operated at 60°C to 65°C with fast tack (3 to 6 seconds). Because it hardens via physical cooling rather than slow water evaporation, it deposits minimal moisture into the paperboard, virtually eliminating post-production warping.
2. Grain Direction Harmony
Paper fibers expand five times more across their Cross Direction (CD) than along their Machine Direction (MD). Rigid box engineers ensure that the grain direction of the outer wrap paper runs parallel to the grain direction of the greyboard base, allowing any microscopic humidity expansion to remain uniform.
5. Concealed Magnetic Closures: Integration Mechanics
A high-satisfaction sensory element of modern book-style rigid boxes is the concealed magnetic “snap”:
MAGNETIC EMBEDMENT DETAIL
┌──────────────────────────────────────────────────────────────┐
│ Outer Specialty Wrap Paper │
│ ══════════════════════════════════════════════════════════ │
│ │ │
│ ▼ │
│ ┌──────────┐ │
│ │ NEODYMIUM│ ◄── CNC-Milled Pocket in Greyboard Core │
│ │ MAGNET │ (Magnet sits 100% flush with surface) │
│ └──────────┘ │
│ ────────────────────────────────────────────────────────── │
│ Inner Box Wall Greyboard (2.0mm) │
└──────────────────────────────────────────────────────────────┘- Neodymium Disc Magnets (N35 to N52 Grade): Rare-earth magnets providing high magnetic pull force (typically 0.8 kg to 2.2 kg pull strength) in a thin 1.0mm to 1.5mm disc profile.
- Precision CNC Pocket Milling: Rather than gluing magnets directly onto the board surface (which creates an amateurish bump under the wrap paper), high-end converting lines use automated milling heads to rout a shallow pocket matching the exact diameter and depth of the magnet. The magnet sits perfectly flush with the board plane, completely invisible under the specialty wrap.
Learn about foil accents for gift boxes in our Cold Foil vs Hot Stamping Guide.
6. Procurement & Quality Assurance Checklist
When specifying custom luxury rigid gift boxes:
- Mandate 90° CNC V-Grooving: Ensure dielines explicitly specify V-cut corners for sharp, perpendicular box edges.
- Specify Greyboard Density: Demand minimum density ≥ 0.75 g/cm³ to prevent panel bending under stacking load.
- Require Hot Jelly Glue Application: Eliminate lid warping defects by specifying animal protein adhesives on automatic box-wrapping lines.
- Audit Magnetic Pull Resistance: Test magnetic closing force under 50 repeated cycles to ensure firm, satisfying acoustic engagement.
