Custom Plastic Carrier Bags: Die-Cut vs Loop Handle Guide
For retail apparel chains, footwear brands, trade show exhibitors, and high-volume department stores, plastic carrier bags remain the most cost-effective walking billboard available. When engineered correctly, a branded shopping bag protects merchandise against rain and mechanical abrasion while displaying sharp brand graphics across city streets.
However, selecting the wrong handle geometry or film thickness introduces costly operational failures. A die-cut handle that tears when a shopper carries heavy winter apparel, plastic film that stretches thin and deforms printed logos, or a loud, crinkly resin that cheapens a boutique purchase directly damages consumer trust.
This technical guide outlines the structural engineering behind commercial plastic carrier bags: resin chemistry (HDPE vs. LDPE vs. MDPE), handle mechanical load distributions, film thickness gauge standards, and post-consumer recycled (PCR) environmental compliance.
Resin Chemistry: HDPE vs. LDPE vs. MDPE
The tactile experience, tensile behavior, and visual clarity of a plastic carrier bag are determined by polymer density and molecular chain branching:
Polymer Microstructure & Performance:
┌───────────────────────────┬───────────────────────────┬───────────────────────────┐
│ Low-Density PE (LDPE) │ High-Density PE (HDPE) │ Medium-Density PE (MDPE) │
├───────────────────────────┼───────────────────────────┼───────────────────────────┤
│ High chain branching │ Linear, crystalline chains│ Engineered polymer blend │
│ Soft, smooth, noiseless │ Stiff, crinkly, high tensile│ Semi-rigid, smooth matte │
│ Best for: Fashion & Retail│ Best for: Grocery & Drug │ Best for: Heavy department│
└───────────────────────────┴───────────────────────────┴───────────────────────────┘1. Low-Density Polyethylene (LDPE)
- Characteristics: Highly branched polymer structure prevents tight crystallization, resulting in a soft, supple, stretchable film with zero crinkling noise.
- Finish Options: High-gloss sheen for vibrant process color reflection, or smooth frosted matte finish.
- Puncture Resistance: High elongation at break (300%–500%) allows LDPE to stretch around sharp shoe boxes or apparel corners without pinholing.
- Application: Boutique apparel, cosmetics, footwear retailers, and corporate exhibition bags.
2. High-Density Polyethylene (HDPE)
- Characteristics: Tightly packed linear polymer chains create high tensile strength and puncture resistance at much thinner gauges.
- Aesthetic: Produces a characteristic crinkle/rustle when handled, with a semi-opaque milky appearance.
- Application: High-volume retail checkout, grocery stores, pharmacies, and classic T-shirt carrier bags where low unit cost and high tensile holding power are paramount.
3. Medium-Density Polyethylene (MDPE)
- Characteristics: Blended in custom ratios (typically 60% HDPE + 40% LDPE) or polymerized directly at 0.926–0.940 g/cm³ density.
- Advantage: Combines the structural upright stiffness of HDPE with the smooth, low-noise surface texture of LDPE.

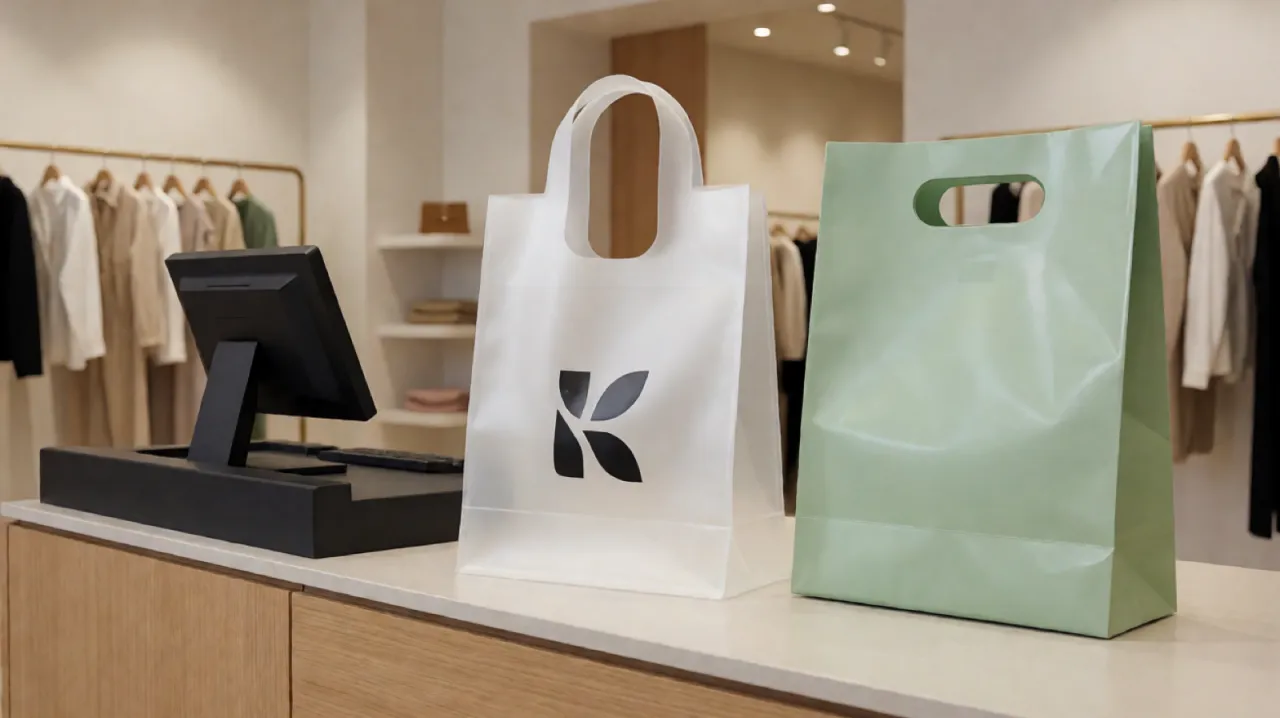

Handle Architecture & Mechanical Load Distributions
The mechanical weak point of any carrier bag is the handle junction. Selecting the right handle style depends on intended payload weight and carry duration.
Handle Architectures:
Punched Die-Cut Reinforced Patch-Handle Soft Loop Handle
┌───────────────────────────┐ ┌───────────────────────────┐ ┌───┐ ┌───┐
│ │ │ │ │ │ │ │
│ ( ) │ │ ( ) │ │ │ │ │
│ │ │ ┌─────────────┐ │ └───┴───────────┴───┘
│ │ │ │ Welded Patch│ │ ┌───────────────────┐
│ │ │ └─────────────┘ │ │ │
└───────────────────────────┘ └───────────────────────────┘ └───────────────────┘1. Simple Die-Cut Handle (Punch Handle)
- Design: An oval or kidney-shaped handle aperture die-punched through the two sidewalls of the bag.
- Mechanical Limitation: When loaded, 100% of the shear stress concentrates at the lower curved radius of the cutout. In unreinforced LDPE, this causes necking (localized plastic stretching) and eventual tearing under weights exceeding 2.5 kg.
- Best Use: Lightweight merchandise (t-shirts, silk apparel, scarves, cosmetics).
2. Reinforced Patch-Handle
- Design: Prior to handle punching, a heavy-duty rectangular polyethylene patch (typically 100 µm – 150 µm thickness) is heat-welded to the interior surface around the handle zone.
- Advantage: Increases tear resistance by 250% to 300% without altering the clean, flush exterior silhouette of the bag.
- Capacity: Comfortably supports 5.0 kg to 8.0 kg (11 to 17.6 lbs) without handle elongation.
- Best Use: Premium fashion boutiques, denim retailers, and book fairs.
3. Soft Loop Handle
- Design: Independent, flexible extruded polyethylene straps (thickness 120–180 µm) welded to the interior top hem.
- Ergonomics: Provides full usable interior height (the user’s fingers do not intrude into the bag compartment) and can be carried over the forearm.
- Capacity: Supports 8.0 kg to 12.0 kg (17.6 to 26.4 lbs).
- Best Use: Heavy winter outerwear, multi-item retail shopping, and department stores.
To evaluate specific styles, compare our custom die-cut handle plastic bags and custom loop handle plastic bags.
Film Thickness Specifications: Micron vs. Mil vs. Gauge
A persistent source of international procurement misunderstandings is thickness unit conversions and single-wall vs. double-wall terminology:
- Microns ($\mu\text{m}$): Metric standard (1 micron = 0.001 mm).
- Mil: US standard (1 mil = 0.001 inch = 25.4 microns).
- Gauge: Legacy UK/US gauge (100 gauge = 1 mil = 25.4 microns).
| Bag Application | Recommended Resin | Metric Thickness ($\mu\text{m}$) | US Thickness (Mil) | Safe Working Load |
|---|---|---|---|---|
| Promotional / Event Handout | LDPE | 35 – 45 $\mu\text{m}$ | 1.4 – 1.8 mil | Up to 2.0 kg (4.4 lbs) |
| Standard Apparel Retail | LDPE / MDPE | 50 – 65 $\mu\text{m}$ | 2.0 – 2.5 mil | Up to 5.0 kg (11.0 lbs) |
| Heavy Boutique / Footwear | LDPE Patch Handle | 70 – 85 $\mu\text{m}$ | 2.8 – 3.3 mil | Up to 8.0 kg (17.6 lbs) |
| Department Store Carrier | Soft Loop LDPE | 80 – 100 $\mu\text{m}$ | 3.1 – 4.0 mil | Up to 12.0 kg (26.4 lbs) |
| Reusable Multi-Use Bag | Heavy LDPE / HDPE | 100+ $\mu\text{m}$ | 4.0+ mil | 15.0+ kg (33.0 lbs) |
Important Procurement Protocol: Always confirm in supplier contracts whether quotes refer to single-wall thickness (one layer of film) or total double-wall thickness (both layers together). Professional manufacturers always quote single-wall thickness.
Environmental Compliance: Post-Consumer Recycled (PCR) Content
With increasing legislative pressure worldwide on single-use packaging:
- UK Plastic Packaging Tax (PPT): Imposes financial penalties on plastic packaging manufactured in or imported into the UK with less than 30% recycled plastic content. We supply GRS-certified (Global Recycled Standard) LDPE carrier bags incorporating 30% to 50% post-consumer recycled resin.
- EU Packaging & Packaging Waste Regulation (PPWR): Mandates minimum recycled content thresholds and strict recyclability within PE stream #4.
- Multi-Use Regulatory Exemptions: Many municipal jurisdictions in the US and Europe exempt plastic bags thicker than 2.25 mil (57.15 $\mu\text{m}$) or 4.0 mil (100 $\mu\text{m}$) from single-use bag bans, classifying them as durable reusable bags.
For brands transitioning toward fabric alternatives, explore our custom reusable shopping bags and custom RPET shopping bags.
Printing Methods & Graphic Execution
- Flexographic In-Line Printing: The standard method for long production runs (10,000+ units), utilizing photopolymer plates and fast-drying low-VOC or water-based inks up to 8 colors.
- Rotogravure Printing: Engraved copper cylinders providing photorealistic CMYK halftones and razor-sharp line weights for luxury retail branding.
- Foil Stamping on Frosted PE: Specialty metallic hot-stamp foils bonded to corona-treated matte film surfaces for boutique brand marks.
To request resin swatch cards, handle tensile samples, or custom printing quotes, contact the packaging specialists at the CraftPack Global Contact Team.
