Collapsible Magnetic Rigid Boxes vs Setup Boxes: B2B Guide
In luxury retail, corporate gifting, high-end electronics, and boutique apparel, the unboxing experience defines brand perception. For decades, the traditional rigid setup box (such as a classic two-piece lift-off lid or neck-box) has served as the gold standard of luxury packaging, offering solid, unyielding structural protection and crisp 90-degree corners.
However, traditional setup boxes have one critical economic flaw: they are shipped and stored fully assembled, meaning brands spend tens of thousands of dollars paying to ship and warehouse empty ambient air. With international ocean freight rates fluctuating and urban warehouse storage costs at all-time highs, the volume penalty of setup boxes severely erodes brand profit margins.

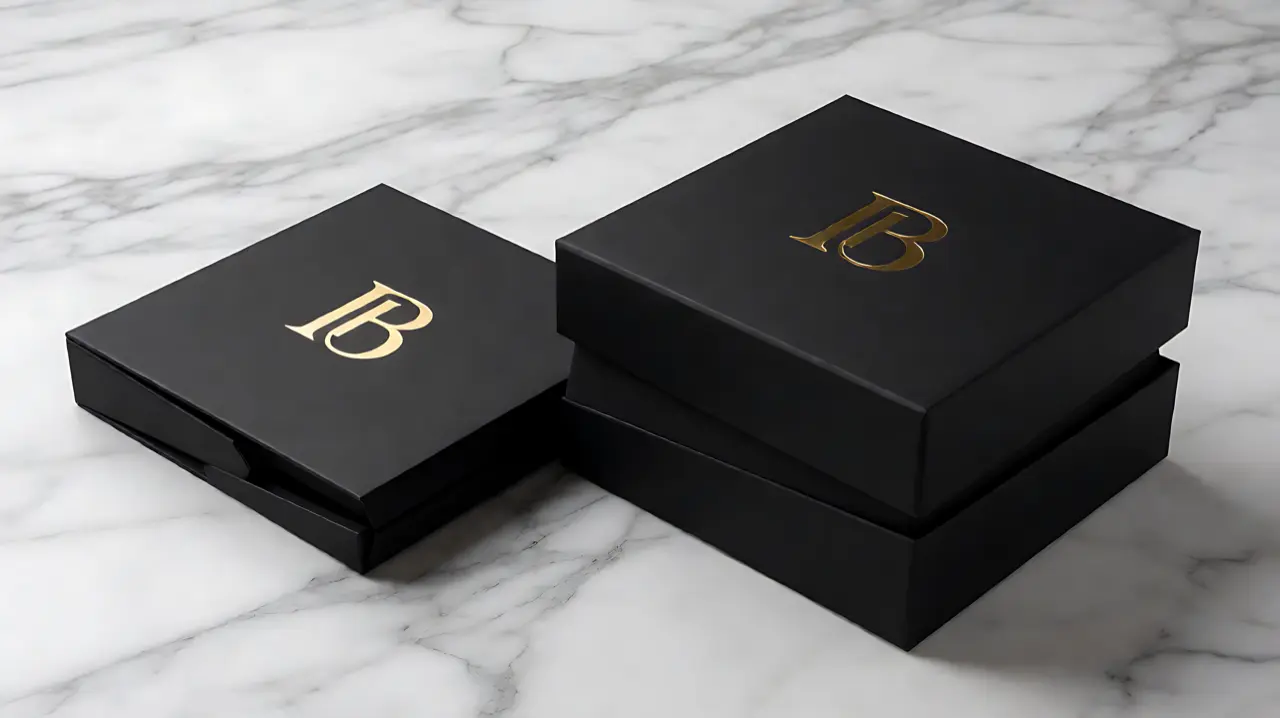

The Collapsible Magnetic Rigid Box (often termed a foldable rigid box or flat-pack magnetic gift box) solves this logistical dilemma. By engineering precision CNC V-grooves into heavy-caliper greyboard cores and embedding high-grade neodymium magnets, collapsible boxes deliver the premium tactile feel of a rigid setup box while shipping 100% flat.
This comprehensive guide analyzes the structural engineering, freight CBM savings, corner assembly mechanisms, and procurement trade-offs between collapsible magnetic boxes and traditional setup boxes.
1. Engineering Comparison: Collapsible Magnetic vs. Traditional Setup Boxes
| Technical Parameter | Collapsible Magnetic Rigid Box | Traditional Two-Piece Setup Box | Book-Style Rigid Setup Box (Non-Folding) |
|---|---|---|---|
| Core Substrate | 1200–1800 GSM High-Density Greyboard (1.8–2.5mm) | 1000–1500 GSM Greyboard (1.5–2.0mm) | 1200–1800 GSM Greyboard |
| Manufacturing Method | Multi-panel CNC V-grooving + laminated wrapping | Die-cut scored tray + taped corners + wrap lamination | Die-cut inner tray glued to outer spine wrap |
| Inbound Freight Volume (CBM) | 0.003 to 0.005 m³ per box (Flat-packed) | 0.018 to 0.028 m³ per box (Pre-assembled) | 0.019 to 0.030 m³ per box |
| Container Capacity (40ft High Cube) | 18,000 to 24,000 units | 2,500 to 3,500 units | 2,200 to 3,200 units |
| Ocean Freight Savings | 75% to 82% freight cost reduction | Baseline (Extremely high freight per unit) | Very high freight per unit |
| Corner Assembly Mechanism | Peel-and-stick 3M adhesive tabs or magnetic pop-up | Permanently taped and wrapped rigid corners | Permanently glued inner tray corners |
| Closure System | Embedded Neodymium (NdFeB) Rare-Earth Magnets | Friction fit lid or ribbon tie | Magnetic clasp or ribbon tie |
| Fulfillment Assembly Time | 5 to 8 seconds (Erect box and peel adhesive) | 0 seconds (Arrives fully erected) | 0 seconds (Arrives fully erected) |
| Structural Rigidity Rating | Excellent (When assembled with high-tack tape) | Flawless monolithic rigidity | Flawless monolithic rigidity |
For coordinating luxury retail paper bags and boutique shopping packaging, explore our Custom Printed Gift Bags Category and Paper Shopping Bags.
2. Freight Economics: Calculating Cubic Meter (CBM) Savings
To understand why global luxury brands are transitioning to collapsible boxes, examine the inbound freight math for an export order of 10,000 luxury gift boxes measuring 300 mm × 220 mm × 100 mm:
Logistics Volume Comparison for 10,000 Units (300 × 220 × 100 mm):
Traditional Pre-Assembled Setup Boxes:
[████████████████████████████████████████] ~76.0 CBM (Requires Two 40ft HC Containers!)
Collapsible Flat-Packed Magnetic Boxes:
[████████] ~14.5 CBM (Fits in One Partial 20ft Container!)
Freight Savings: ~81% Reduction in Ocean Shipping & Warehousing Cost- Ocean Freight Analysis: Shipping 76 CBM of rigid setup boxes requires two 40ft High Cube ocean containers. In contrast, 10,000 flat-folded collapsible boxes condense into just 14.5 CBM—fitting easily within a single 20ft container or taking up less than a quarter of a 40ft container.
- Warehouse Storage Overhead: In urban fulfillment centers where warehouse pallet staging costs $25 to $40 per pallet per month, collapsible boxes save brands tens of thousands of dollars annually by reducing pallet requirements from 120 pallet positions down to just 22 pallets.
3. Structural Mechanics: Precision 90° V-Grooving & Greyboard Density
The crisp appearance of a collapsible luxury box depends entirely on computerized V-grooving technology:
Cross-Section of Greyboard CNC V-Grooving:
Die-Cut 90° / 120° V-Groove Angle
▼
╲ ╱
╲ ╱
╲ ╱
──────────┴───────────────────┴──────────
[=======================================] <-- High-Density Greyboard (1.8mm)
[───────────────────────────────────────] <-- Outer Art Paper Wrapping (157 GSM)1. Die-Cutting vs. Computerized CNC V-Grooving
- Standard Die-Cutting (Creasing): Compresses the paper fibers along a score line. When folded, it produces rounded, spongy edges with a visible bend radius (R > 1.5mm), immediately signaling cheap folding carton construction.
- Precision CNC V-Grooving: High-speed tungsten carbide router blades carve a 90° or 120° triangular channel through 85% of the greyboard thickness, leaving only a microscopic bottom layer of cellulose intact. When folded, the outer wrapping paper stretches taut over the joint, producing a razor-sharp, knife-edge 90-degree corner identical to a solid wooden or setup box.
2. Greyboard Caliper & Density
To prevent panel warpage under atmospheric humidity changes, specify high-density greyboard with an apparent density of $\ge 0.75\text{ g/cm}^3$ (caliper: 1.8mm to 2.5mm / 1200 to 1800 GSM). Low-grade recycled strawboard will bow outwards, preventing magnetic closures from aligning.
4. Corner Locking Architecture & Magnetic Enclosure Physics
Collapsible boxes use two primary engineering mechanisms to lock the four upright corners upon erection:
1. Four-Corner Self-Adhesive Tape Tabs (3M High-Tack)
The most common and cost-effective method. Each triangular corner flap features a pre-applied strip of heavy-duty double-sided acrylic adhesive with a peel-off glassine release liner.
- Assembly: Line workers pull the release tabs, pull the front and rear walls upright, and press the triangular flaps firmly into the corner for 2 seconds.
- Bond Durability: Formulated with high-shear acrylic adhesive capable of withstanding temperatures from -10°C to +60°C without adhesive slippage or corner delamination.
2. Pop-Up Magnetic Folding Corners (Reusable / Tool-Free)
For ultra-luxury applications where the consumer should be able to disassemble and re-collapse the box repeatedly, small neodymium magnets are embedded directly inside the four corner flaps. The box snaps into rigid 3D form automatically when unfolded, requiring zero adhesive peeling.
3. Magnetic Closure Flap Engineering
- Magnet Specification: Pair grade N35 to N42 Neodymium-Iron-Boron (NdFeB) sintered disc magnets (typical dimensions: Ø12mm × 1.5mm thick).
- Polarity Matching: Magnets must be machine-inserted into die-cut recessed cavities in the greyboard core before paper wrapping to ensure absolute surface flushness, with magnetic pull force calibrated between 0.8 kg and 1.5 kg to provide an audible, tactile “snap” without tearing the exterior art paper upon opening.
5. Finishing & Outer Covering Substrates
The exterior and interior lining of collapsible boxes can be fully customized with premium decorative materials:
- 157 GSM Coated Art Paper (C2S): The standard canvas for multi-color offset printing, soft-touch matte lamination, hot foil stamping (gold, silver, rose gold, holographic), and spot UV varnish.
- Specialty Embossed Papers (Dyed-Through Pulp): Leatherette paper, linen texture paper, or metallized pearlized papers that offer exceptional scratch resistance and eliminate white edge show-through along fold lines.
- Internal Custom Fitments: Match with die-cut EVA foam inserts, high-density velvet-lined vacuum trays, or FSC-certified folding paperboard cradles engineered to secure heavy bottles, perfumes, or jewelry.
6. B2B Sourcing Specification Checklist
When requesting quotes for custom collapsible magnetic boxes, define the following technical parameters:
- Internal Dimensions: Specify Length × Width × Depth in millimeters (L × W × D), ensuring clearance for interior product inserts.
- Greyboard Caliper: Choose 1.8mm (1200 GSM) for items under 1.5 kg; choose 2.2mm–2.5mm (1500–1800 GSM) for heavy glass, spirits, or electronics.
- Corner Assembly Style: Choose between 4-Corner 3M Peel-and-Stick Tape (standard) or Embedded Magnetic Corner Self-Lock (multi-reusable).
- Drop and Transit Validation: Request ISTA 1A drop testing on erected samples to verify corner adhesive bond strength under dynamic impact.
To engineer custom collapsible magnetic luxury boxes that slash your shipping CBM while elevating unboxing perception, connect with the CraftPack Global luxury packaging studio.
