Cardboard Bases & Turnover Rims: Luxury Gift Bag Architecture
In luxury retail, the physical sensation of packaging communicates brand prestige long before the customer unpacks their purchase. When a customer carries a premium garment, fine jewelry, or a bottle of aged spirits, the bag must not sag, crinkle, or distort under load. It must maintain crisp, razor-sharp architectural lines, an upright posture on boutique countertops, and effortless handle ergonomics.

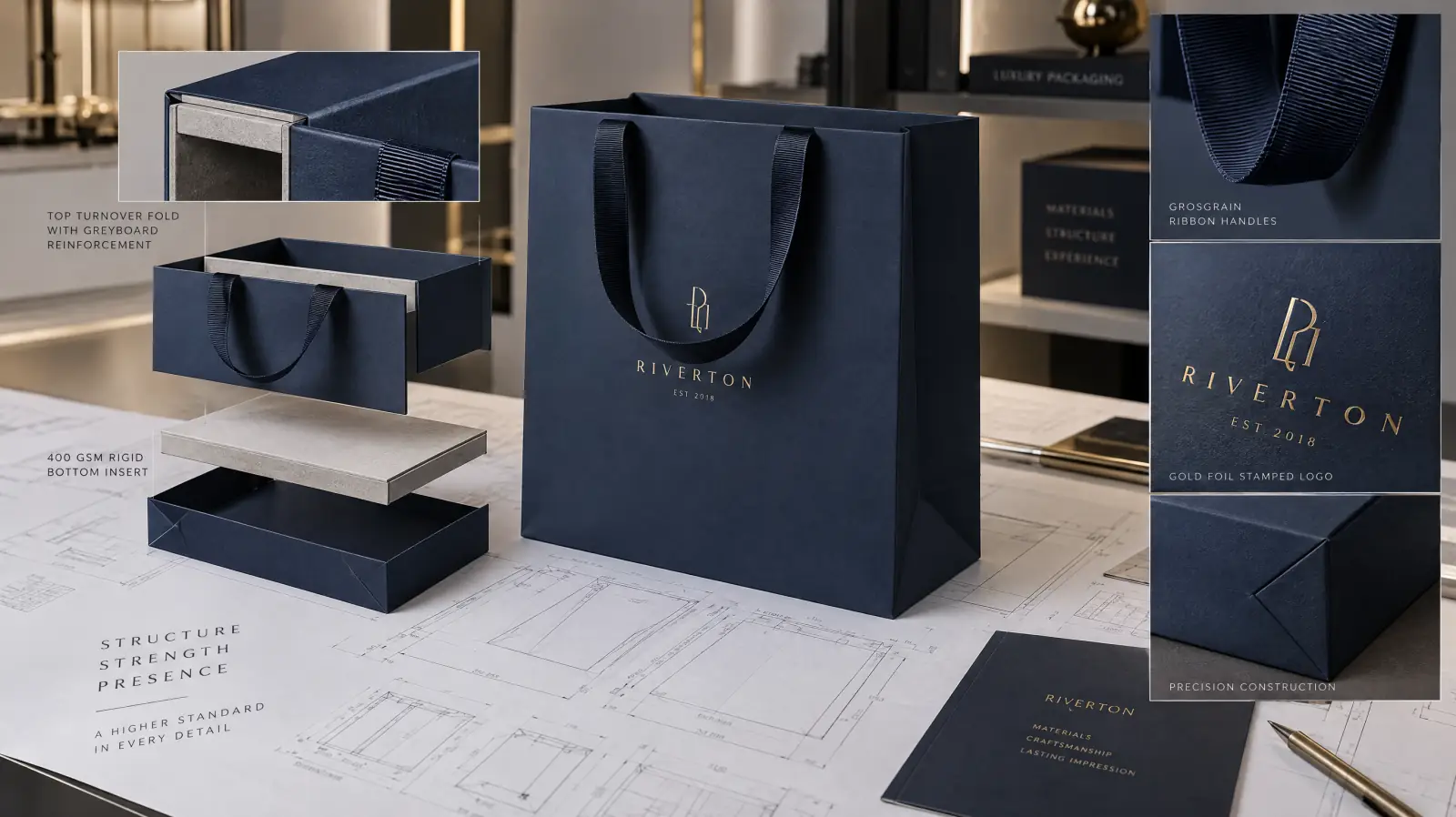

This rigid structural integrity does not happen by accident. It is the result of deliberate internal reinforcement engineering: the top turnover rim and the rigid bottom base board.
While conventional machine-made grocery sacks rely solely on single-ply paper walls, luxury Eurototes and high-end custom printed gift bags are hybrid structural assemblies—combining precision-scored art paper with industrial-grade greyboard reinforcements.
This guide analyzes the mechanical engineering of luxury gift bags, examining turnover board calipers (GSM), base load dissipation physics, adhesive shear performance, and handle anchor pull-out resistance up to 15 kg.
1. Quick Summary: Structural Reinforcement Architecture
| Component | Standard Retail Paper Bag | Luxury Reinforced Gift Bag (Eurotote) |
|---|---|---|
| Top Lip Construction | Raw serrated edge or simple fold | 35mm–55mm turnover fold reinforced with 350–450 GSM greyboard |
| Base Construction | Glued envelope folds (no interior support) | 400–600 GSM rigid white-lined chipboard glued flat against base |
| Handle Anchoring | Paper patch glued to single-ply paper wall | Trapped between wall and rigid turnover card, or knotted via eyelets |
| Under-Load Deformation | Severe bottom bowing (“sagging basket” effect) | Zero deflection; retains 100% planar rectangular floor |
| Handle Pull-Out Force | Fails at 35 – 55 N (approx. 3.5 – 5.5 kg) | Withstands 120 – 180+ N (approx. 12 – 18+ kg tensile shock load) |
| Side Crease Definition | Soft rolling creases | Machine-scored steel-rule die creases (0.8mm matrix) |
| Assembly Method | 100% web-fed automated converting | Sheet-fed offset printing, precision die-cutting, manual assembly |
Explore our complete luxury carrier range in the Gift Bags Category and compare styles in our Luxury Gift Bags Finishes Guide.
2. The Mechanics of the Top Turnover Rim (Header Reinforcement)
When a shopper lifts a filled bag, dynamic gravity converts load mass into upward shear force concentrated at two tiny handle attachment points.
┌────────────────────────────────────────────────────────────────────────┐
│ TURNOVER RIM CROSS-SECTION DYNAMICS │
├────────────────────────────────────────────────────────────────────────┤
│ │
│ ▲ Upward Tensile Force from Handle (F_handle) │
│ │ │
│ ┌────────────┴───────────────────────────────────────────────────┐ │
│ │ OUTER PAPER WALL (210 - 250 GSM) │ │
│ │ ┌────────────────────────────────────────────────────────────┐ │ │
│ │ │ RIGID GREYBOARD REINFORCEMENT CARD (350 - 450 GSM) │ │ │
│ │ │ • Width: 35mm to 55mm │ │ │
│ │ │ • Dissipates point stress across entire top perimeter │ │ │
│ │ └────────────────────────────────────────────────────────────┘ │ │
│ │ INNER TURNOVER LIP (Folded inward & bonded with PUR hot-melt) │ │
│ └────────────────────────────────────────────────────────────────┘ │
│ │ │
│ ▼ Downward Bag Weight │
│ │
└────────────────────────────────────────────────────────────────────────┘Why Single-Ply Paper Fails
In unreinforced bags, the tensile force of the handle acts directly against the thin paper wall. Under sudden movement (such as stepping off a curb or swinging the bag), peak kinetic shock can exceed 80 Newtons, ripping the handle straight through the paper fiber matrix (handle pull-out failure).
How the Turnover Rim Solves Point Stress
- The Core Material: A continuous strip of 350 to 450 GSM high-density greyboard (or bleached duplex board) is inserted beneath the top fold.
- Stress Distribution Perimeter: The rigid card acts as a horizontal structural beam. Instead of concentrating load at a 15mm glue spot, the tensile force is distributed across the entire upper circumference of the bag.
- Punched Hole Tear Resistance: For knotted cotton rope or polypropylene cord handles, holes punched through both the paper and the greyboard core achieve a tear-out resistance exceeding 150 N (15.3 kgf) per handle.
3. The Bottom Base Board: Load Dissipation Physics
When placing heavy items with small footprints—such as a square perfume flacon, a hardback book, or a 750ml glass champagne bottle—into a bag without base reinforcement, the concentrated weight causes severe downward bulging:
UNREINFORCED BOTTOM (Point Stress) REINFORCED BASE BOARD (Planar Beam)
┌──────────────────────────────┐ ┌──────────────────────────────┐
│ Concentrated point load │ │ Heavy item rests on rigid │
│ causes central bottom sag │ │ 450 GSM laminated board │
│ Gussets pull inward │ │ Distributes weight to edges │
│ RESULT: SAGS & TIPS OVER │ │ RESULT: 100% FLAT & RIGID │
│ │ │ │
│ \ / │ │ │ │ │
│ \ [ BOTTLE] / │ │ │ [ BOTTLE] │ │
│ \__________/ │ │ └──────────────┘ │
│ (SAG VEE) │ │ ════════════════ │
└──────────────────────────────┘ └──────────────────────────────┘Engineering Specifications of the Base Cardboard Insert
- Caliper & Density: Typically 400 to 600 GSM white-lined chipboard. One side is lined with bleached virgin paper to maintain an immaculate white interior aesthetic.
- Precision Tolerance: Die-cut to within $\pm 0.5\text{ mm}$ of the bag’s interior base dimensions ($W \times G$). If the board is too small, it shifts during transit; if too large, it prevents the bag from collapsing flat for shipping.
- Adhesive Bonding: Glued to the interior floor using cross-hatched lines of water-based polyvinyl acetate (PVA) or reactive polyurethane (PUR) hot-melt, locking the board permanently against the bottom fold.
4. Handle Anchoring Methods: Hidden Ribbon vs. Knotted Cord
Luxury brands select handle anchoring techniques based on brand visual identity and structural requirements:
┌────────────────────────────────────────────────────────────────────────┐
│ HANDLE ATTACHMENT TECHNIQUES │
├────────────────────────────────┬───────────────────────────────────────┤
│ BLIND INSERTION (HIDDEN) │ KNOTTED EYELET ATTACHMENT │
├────────────────────────────────┼───────────────────────────────────────┤
│ │ │
│ • Ribbon ends sandwiched │ • Cord passes through hole in rim │
│ between outer paper and │ • Secured by hand-tied knot │
│ turnover reinforcement │ or ultrasonic plastic T-bar │
│ • 100% invisible externally │ • Classic maritime / boutique look │
│ • Ultra-clean modern look │ • Maximum mechanical hold (18 kg) │
│ • Best for grosgrain/satin │ • Best for spun cotton rope │
│ │ │
└────────────────────────────────┴───────────────────────────────────────┘- Blind Glued Ribbon Anchoring: The ribbon ends are anchored securely between the outer paper wall and the greyboard core using high-shear structural hot-melt adhesive. The exterior face remains completely unmarred by holes, presenting a seamless visual canvas for metallic foil stamping and corporate embossing.
- Eyelet Knotting: Spun cotton cords pass through machine-punched 5mm–6mm eyelets and are secured with clean internal overhand knots. For additional durability, brass or matte black nickel eyelet grommets can be crimped to protect the paper rim from friction wear.
5. Paper Selection & Crease Folding Science
The outer shell of a luxury gift bag must withstand deep 180-degree folding along side and bottom gussets without surface coating micro-cracks:
- Substrate Thickness Balance: Ideal outer stock is 210 to 250 GSM C2S Coated Art Paper or Solid Bleached Sulfate (SBS). Thinner stocks (<180 GSM) feel lightweight, while overly thick stocks (>300 GSM) tend to crack along score lines unless laminated.
- Surface Lamination Armor: Applying a 16µm–20µm biaxially-oriented polypropylene (BOPP) film (matte, gloss, or velvet soft-touch) provides tensile elasticity that holds paper fibers together along sharp creases.
- Grain Direction Alignment: Precision converters ensure the paper’s machine grain direction (MD) runs parallel to the vertical bag height, facilitating smooth folding of the side gussets and preventing bowing.
6. Luxury Gift Bag Buyer Engineering Checklist
When drafting an RFP for custom luxury boutique bags, confirm these structural parameters:
- Bag Dimensions: Width ($W$) x Gusset ($G$) x Height ($H$) in mm.
- Outer Shell Stock: 210 GSM, 230 GSM, or 250 GSM C2S coated art paper.
- Turnover Header Board: Specify 350–450 GSM greyboard reinforcement (width: 40mm).
- Bottom Floor Board: Specify 450–550 GSM white-lined chipboard, adhesive-fixed to interior.
- Handle Style: Grosgrain ribbon (20mm/25mm width) with hidden blind gluing, or 6mm spun cotton rope with clean knots.
- Surface Embellishment: Matte anti-scuff lamination, hot foil stamping, debossing, or spot UV.
- Transit Load Rating: Target weight capacity (e.g., 5 kg cosmetic kit vs 10 kg apparel/shoes).
